In the world of construction aggregates, innovation often lies in reimagining traditional materials. Flint, a stone steeped in human history as the spark of early technology, is now being recognized for its potential as a superior component in modern building. This blog post delves into the journey of transforming raw flint nodules into specification-grade construction sand, exploring its nature, its processing, and the essential equipment needed for this specialized operation.
What is Flint? Understanding the Material
Flint is a sedimentary cryptocrystalline form of the mineral quartz, specifically a variety of chert. It’s renowned for its conchoidal fracture—a smooth, curved break that produces extremely sharp edges. This property made it invaluable to early humans for crafting tools, weapons, and creating sparks to start fires.
Geologically, flint forms within chalk or limestone deposits. It typically occurs as nodules or layers, often with a white, chalky exterior crust and a glassy, dark grey, black, or brown interior. Its key characteristics are:
- Extreme Hardness: It ranks around seven on the Mohs scale.
- Durability: It is highly resistant to weathering and chemical attack.
- High Silica Content: It is primarily composed of silicon dioxide (SiO₂), which contributes to its strength and inertness.
Modern Applications of Flint:
While its historical uses are famous, flint’s properties lend it to several modern industrial applications, which create the demand for processing it:
- Construction Aggregate: The primary focus of this article. Crushed and graded flint is a high-strength sand and fine aggregate in concrete, mortar, asphalt, and as a bedding layer for paving.
- Abrasive Blasting: Crushed flint is used as a medium-cost abrasive for cleaning metal surfaces and in sandblasting operations.
- Ceramics and Glassmaking: High-purity flint is a source of silica for the manufacture of ceramics, glass, and glazes.
- Water Filtration: Its chemical inertness and specific grain shape make processed flint an effective medium for water filtration systems.
- Decorative Uses: Tumbled flint pebbles and chips are popular in landscaping, decorative concrete, and architectural features.
Understanding these properties and markets is crucial because they dictate the quality and specifications required for the end product—construction sand.
The Processing Journey: From Flint Nodule to Construction Sand
Transforming dense, rugged flint nodules into consistent, workable construction sand is a multi-stage process designed to liberate, reduce, and classify the material. The goal is to produce sand that meets strict gradation standards (like those in ASTM C33 or equivalent local specifications) for optimal performance in concrete or mortar.
Here is a step-by-step breakdown of the standard process:
Step 1: Extraction and Primary Crushing

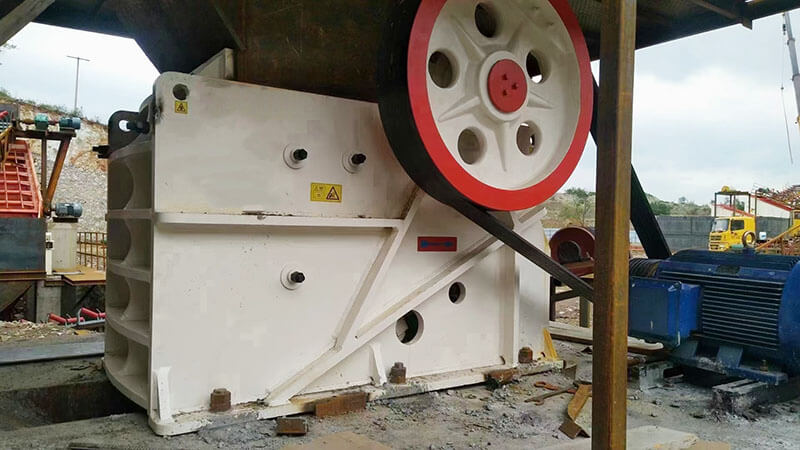

The process begins at the quarry face, where flint-bearing chalk or limestone is extracted. The raw material, containing flint nodules embedded in a softer matrix, is transported to the processing plant. The first stage is primary crushing, typically using a jaw crusher. This powerful machine applies compressive force to break down large chunks (often up to 1 meter in diameter) into manageable pieces of roughly 150-200mm.
Step 2: Washing and Scrubbing (Crucial for Flint)
Coat flint nodules with a stubborn, clay-rich chalk or limestone crust. Remove adherent material to produce a clean, high-quality sand product. Feed the crushed material into a log washer or an attrition scrubber. These machines utilize a combination of water, mechanical agitation, and the abrasive tumbling of particles against each other to disintegrate and wash away the soft coatings, thereby liberating clean flint gravel.
Step 3: Secondary and Tertiary Crushing
The clean, coarse flint gravel then enters the size reduction circuit. A cone crusher is ideal for the secondary crushing stage, taking the 150mm material down to 50mm or smaller. For producing sand, a tertiary crushing stage is essential. Here, a Vertical Shaft Impactor (VSI) crusher becomes the star piece of equipment. A VSI uses a high-speed rotor to throw the flint particles against anvils or a crushing chamber wall, utilizing “rock-on-rock” or “rock-on-iron” impact. This method is exceptionally efficient at creating a cubical, well-shaped sand product and generating the fine particles needed for the sand gradation.
Step 4: Screening and Grading

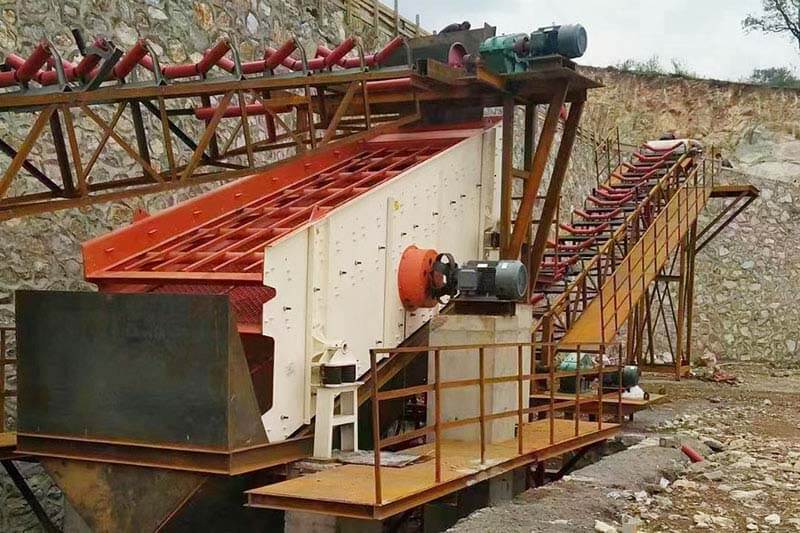

After each crushing stage, screen the material. Vibrating screens with multiple decks separate the product into different size fractions. Send the oversized material back to the appropriate crusher (a closed-circuit system). Set up the screens to isolate the “sand” fraction, typically particles smaller than 4.75mm.
Step 5: Sand Classification and Dewatering
Send the sand fraction from the screens to a sand classifier, such as a hydrocyclone or a dewatering screen. This step is critical for two reasons:
- Removing Excess Fines: It separates the desired coarse and medium sand from unwanted ultra-fine silt and clay particles, which can be detrimental to concrete strength if not controlled.
- Dewatering: It removes excess water from the sand, bringing it to a saleable moisture content. A dewatering screen or a sand screw (also known as a fine material washer) recovers the sand from the water slurry, allowing for water recycling within the plant.
Step 6: Stockpiling and Quality Control
The final step is to transport the processed flint sand to stockpiles. Representative samples are taken regularly for quality control testing in an on-site lab. Key tests include:
- Particle Size Distribution (Gradation): Ensuring it falls within the specified limits.
- Shape Analysis: Confirming cubical, rounded particles for better workability.
- Cleanliness Test: Measuring clay, silt, and organic content.
- Specific Gravity & Absorption: Important for concrete mix design.
Essential Equipment for Processing Flint into Sand
A successful flint sand processing operation relies on a robust and correctly sequenced equipment circuit. Here is a summary of the core machinery:
Crushing & Screening equipment:
- Primary Crusher: Jaw Crusher – For initial, high-volume size reduction.
- Washing/Scrubbing Equipment: Log Washer or Attrition Scrubber – Non-negotiable for removing the flint’s natural coating.
- Secondary Crusher: Cone Crusher – For efficient intermediate crushing with high reduction ratios.
- Tertiary/Sand Crusher: Vertical Shaft Impactor (VSI) Crusher – The most critical machine for shaping the sand, creating fines, and ensuring a cubical product. A high-speed rotor is key.
- Screening Equipment: Multi-Deck Vibrating Screens – For accurate size separation and closed-circuit crushing control.
Classification & Dewatering Equipment:
- Hydrocyclone – For efficient removal of silt and fine clays via centrifugal force.
- Dewatering Screen – For draining water from the sand product.
- Sand Screw (Fine Material Washer) – Combines light scrubbing, classification, and dewatering in one unit.
- Material Handling: Conveyor Belts – To transport material between all stages.
- Water Management System: Sump Pumps, Settling Ponds, and Water Tanks – A closed-loop water system is vital for environmental compliance and cost efficiency.
Key Consideration for Flint: Flint’s extreme hardness causes significant wear on equipment. Investing in tungsten carbide or high-chrome wear parts for crusher liners, VSI rotors, and pump impellers is essential to minimize downtime and maintenance costs.
Conclusion: Tapping into a High-Strength Resource
Processing flint into construction sand is more than just crushing rock; it’s a sophisticated exercise that leverages modern technology to unlock the inherent strength of this ancient stone. The resulting sand is a premium aggregate, valued for its durability, clean composition, and excellent particle shape. For mining and aggregate companies sitting on flint-rich deposits, investing in the process flow and robust, wear-resistant equipment opens the door to a high-value product that meets the rigorous demands of the modern construction industry. By transforming flint from a historical curiosity into a cornerstone of contemporary building, we bridge the gap between our past and our engineered future.
