Vibrating Screen

Vibrating screen is a rectangular single-, double-, and multi-layer, high-efficiency new screening equipment. It does circular trajectory, so also known as the circular vibratory screen. The screen machine is ideal equipment in rock crushing and screening plant.

JXSC vibrator screens adopt the cylindrical eccentric shaft exciter and the partial block to adjust the amplitude. The long material sieve line and the screen specifications are many. Specifical design for the quarry plant, stone crusher plant and also appropriate for mining, coal and mineral preparation. Our screening installation has advantages of reliable structure, strong excitation force, durability, and low vibration noise.

Production Parameter
Screen Mesh: 3-80mm                         Capacity: 10-800tph
We also can customize the design according to your demand.

Vibrating Screen Benefit

Vibrating screen working principle:

The vibratory screening machine is to utilize reciprocating vibration of the vibration generator produced. The processing of the screen separates the different size material by a single- or triple-deck screen. That is, according to the size of particles to separate. The underlayer is a small material, and the upper layer is coarse particle material. In the end, the coarse and fine particles are separated and the screening process is completed.

Types of vibrating screens
According to motion theory, screening machines can divide into linear, circular, horizontal, eccentric shaft vibratory screens and inclined screen. The single deck, double deck, and multilayer vibrating screen is the basis of the numbers of the layers. Because of the different screening materials, we also call it gravel screen, sand screen machine, aggregate screening, wet vibratory screens.

Performance characteristics:
1. The material screen drip line is long and has many screening specifications.
2. The eccentric block as an exciting force, a strong exciting force.
3. Sieve beams and sieve box connected by high strength bolts, no welding.
4. Sieve machine has the advantages of simple structure and convenient repair.
5. The small amplitude, high frequency, high dip structure, so this machine is of high efficiency, maximum, long life, low power consumption, low noise.

Screening Structure

screen structure

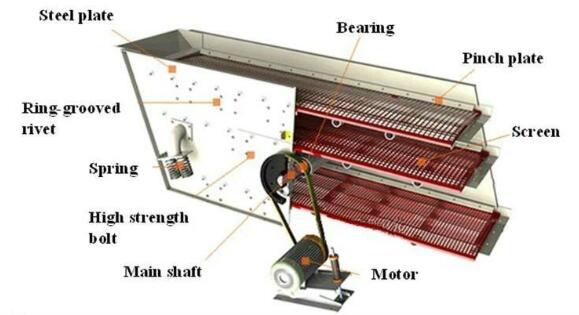

vibrating screen parts: steek plate, ring-grooved rivet spring, high strength bolt, shaft, bearing, pinch plate, screen, motor.

Vibrating screen in Congo
100t/h Vibrating screen in South Africa
Vibrating screen in New Zealand

Five Factors of Effect Screening

The vibratory screen is the main equipment in aggregate processing. Five factors of effective screening.

1. The shape of the particle and screen size
Most screening material is cylinder or anomaly, and the screen size has both circular and rectangle. The shape of the material granule touch screen for particle whether passed has a big effect. The rectangle screen is good for the circular particle, and the circular screen for irregularity.

2. The opening rate of the screen surface
The more opening rate of the screen surface, the more passed.

3. The thickness of materials
If the materials are too thickness, the upside will difficult to pass. If the materials are too thin, the screening products will low, also undesirable.

4. The state of screen motion
The practice shows that level or vertical repeating motion of the screen, The screening effect is not good. The vibratory screeners combined the two motion is better.

5. The peculiarity of the material
All the size, humidity, friction and flowability of material will affect the screen. The humidity higher, friction bigger, flowability too bad, so the passing rate lower.
