Belt Conveyor

JXSC belt conveyor has the advantages of the big conveying amount, simple structure, convenient maintenance. Almost every step of the complete mineral processing circuit is connecting by the conveyor system. Mining belt conveyors are capable of operating heavy duty work even if under harsh conditions. Our conveyor machine can incline and horizontal transmission.

Application Field
Mine, metallurgy, quarry, cement, concrete, aggregate, gravel & sand, coal, silicate and chemical industries, and other n bulk materials transporting applications.
Suitable Material
Coal, metal, ore, gravel, sand, cement, chemical fertilizer, kaolin clay, ash, etc.

Advantages of JXSC Rock Conveyors

1. High capability at low cost
Because there is little relative movement between the material and the conveyor belt, not only the running resistance is small (about 1/3 - 1/5 of the scraper conveyor), but also the wear and breakage of the cargo are small and the productivity is high. These are conducive to reducing production costs.

2. Flexibility
The transmission line of belt conveyor has strong adaptability and flexibility. The length of the line depends on demand, it can be as short as a few meters and as long as 10 km or more. Can Be installed in small tunnels, can also be installed in the ground over traffic chaos and dangerous areas. Belt conveyor design service is available.

3. Easy to maintain
Simple machine structure, JXSC engineers help you to install roller conveyor system, and prepare some wear parts replacement.

4. It is suitable for conveying materials whose density is less than 1.67 t/m3. And the temperature of the delivered materials is less than 60°C。

Belt Conveyor Specification

Belt width
(mm)
Conveying length(m) Speed(m/s) Capacity(t/h)
(mm)  Power(kw) (m/s) (t/h)
400 ≤10 12-15 15-30 1.25-2.0 30-60
3 3-4 4-7.5
500 ≤10 12-15 15-30 1.25-2.0 40-80
3 4-5.5 5.5-7.5
650 ≤10 12-15 15-30 1.25-2.0 80-120
4 7.5 7.5-11
800 ≤10 12-15 15-30 1.25-2.0 120-200
4 7.5 7.5-15
1000 ≤10 10-20 20-40 1.25-2.0 200-320
5.5 7.5-11 11-22
1200 ≤10 10-20 20-40 1.25-2.0 290-480
7.5 7.5-15 15-30
1400 ≤10 10-20 <20-40 1.25-2.0 400-680
11 15-22 22-45
1600 ≤10 10-20 <20-50 1.25-2.0 600-1080
15 22-30 30-75
1800 ≤10 10-20 <20-50 1.0-2.0 200-1500
18.5 30-45 45-110
2000 ≤10 10-20 <20-40 1.0-2.0 1000-2000
22 45-55 55-132
2400 ≤10 10-20 <20-40 1.0-2.0 1500-3000
30 55-75 75-185

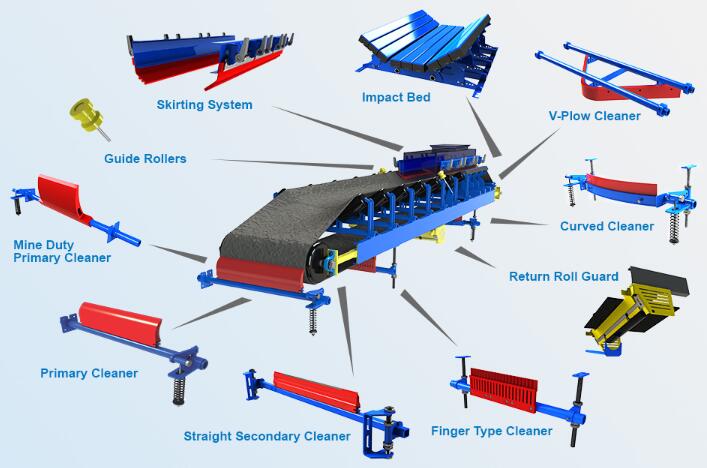

rubber mining conveyor diagram



Conveyor  Parts: frame, support base, head pulley, carrying belt, belt roller, tensioning station, rubber belt, motor, etc.

Types of conveyors: Retractable/telescopic conveyor, general rubber, inclined, hytrol, apron, bucket, sand, screw, roller, slat, dirt conveyor.

Gravity conveyor material: PVC, PU, polyethylene, polypropylene, chain belt, chain conveyor, modular conveyor, nylon, PTFE, stainless steel, screw conveyor.

Portable Rock Conveyor

The mobile conveyor belt is mainly used for places where the loading and unloading places often change, such as grain depots, ports, docks, stations, coal yards, warehouses, construction sites, sand and stone yards, farms, etc. Used for short-distance transportation and loading and unloading of bulk materials or finished articles weighing less than 300 kg per piece. The bottom of the conveyor is equipped with universal wheels, which can move freely according to the stacking position of materials. It is a kind of continuous conveying and handling equipment with high work efficiency, safe and reliable use and good mobility. Often used mobile mini conveyor width of 500 mm, 600 mm, 800 mm, etc. Regular length of 6 meters, 8 meters, 10 meters, 12 meters, 15 meters, 16 meters, 18 meters, 20 meters, 22 meters, 30 meters and other customized belts for special applications. The small conveyor equipment is designed for mobile processing plants.
