Wheel sand washing machine

The sand washing machine is washing equipment for artificial sand or natural sand. The bucket wheel sand washing machine cleans and separates stone powder and dust to improve the sand quality. The machine has a peculiarity of washing sand clean, reasonable structure design, high and yields.

The drive part segregates from water and sand which makes the malfunction less than the commons. JXSC wheel sand washing equipment is made of special manufacturing materials, that can anti-wear, anti-corrosion, can normal working in any bad environment. And also can use more time. The washing machine is a good choice in the sand plant.

Application Field
Sand Washing, Aggregate Field, Concrete Mixing Plant, Dry Mortar Plant Desulfurization, Quartz Sand, etc.

Wheel sand washing machine Benefit

Parameter Specification

Feeding size: ≤10mm
Processing capacity: 30-200tph

Performance characteristics:

1. Simple structure, convenient to repair.
2. High processing capacity and low power consumption.
3. Low wear-parts consumption, low cost.
4. Operate steadily.

Working Principle

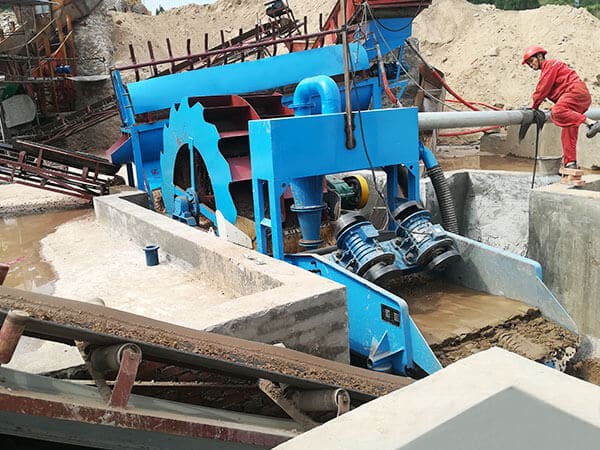

When the wheel sand washing machine working. The vane wheel turning slowly after the motor slowdown by triangular belt, reduction box, and wheel gear. The sand falls into wash-trough by vibrating feeder, roll and grinding each other. Then the impurities out which cover on the sand, also broke the water vapor window that conducive to dehydration.

Meanwhile, add into the water to make powerful flow, the light impurities are taken away. And discharged from the overflow port, the washing processing was completed. The clean and take away by a vane, finally the sand pour into the discharge chute from the rotary vane wheel to complete sand washing plant processing.

Sand Washing Process

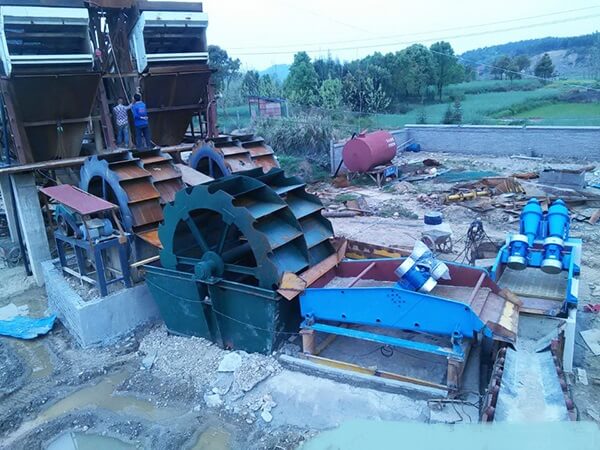

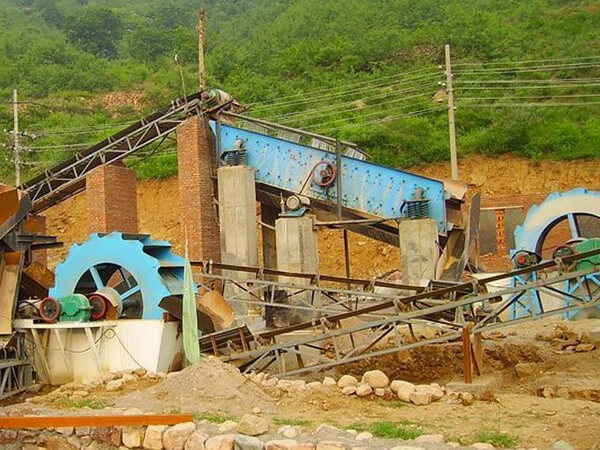

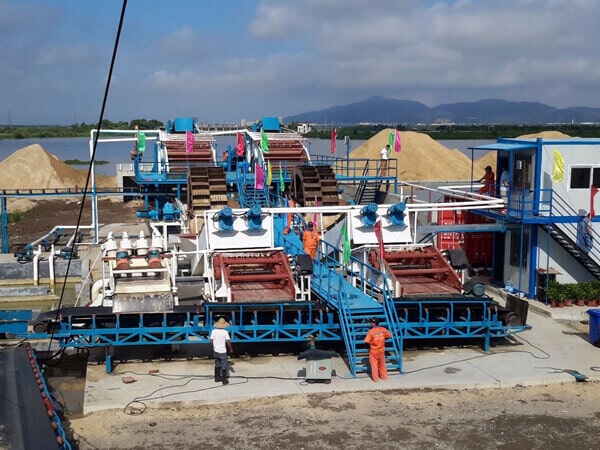

The sand washing plant is composed of jaw crusher, sand making machine, sand washing machine, and belt conveyor. Its technology is that the stone materials are uniformly sent to jaw crusher by vibrating feeder for crushing. Then the primary crushing material sent to the sand crusher machine by belt conveyors for further crushing. The finely crushed material is sent to the vibrating screen for screening. The material meets the requirements of the finished product size is sent to the sand machine for cleaning. The finished product is exported by the conveyor belt. The materials that do not meet the requirements of the finished product size are returned from the vibrating screen to the sand machine for re-processing, forming a closed circuit for many times.

If you have sand making project that wants an engineer to help you. The Stone Crusher Manufacturers JXSC engineers are a pleasure to help you. Click here to contact us.
