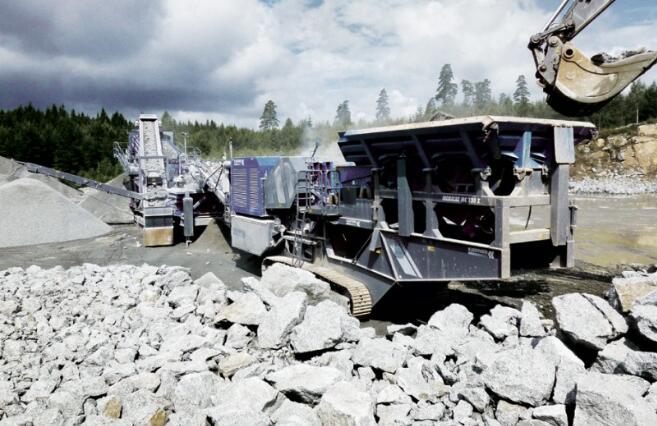

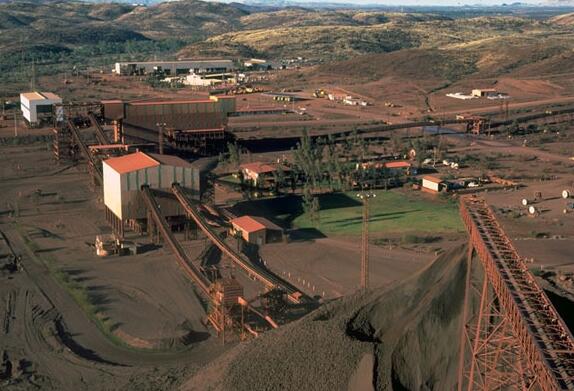

JXSC Stone crusher plant consists of vibrating feeders, jaw crushers, cone crushers, impact crushers, vibrating screens, belt conveyor and electric control panel, etc. We also have mobile stone crusher plant, widely crush Pebble, granite, basalt, iron ore, limestone, quartz, diabase, iron ore, gold, copper, etc.

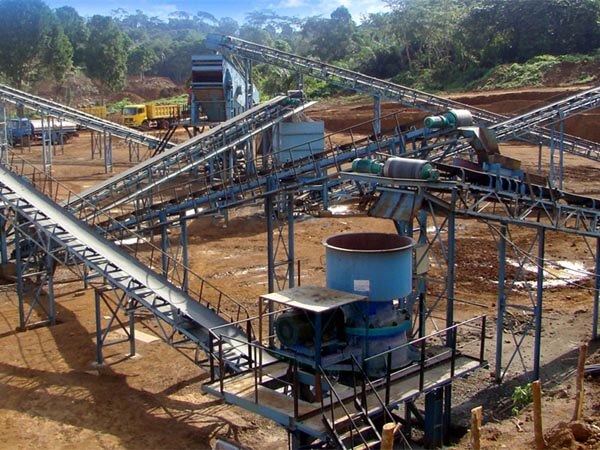

1. Main equipment: Jaw crusher, impact rock crusher, vibratory feeder, single cylinder cone crushers, vibratory screen.

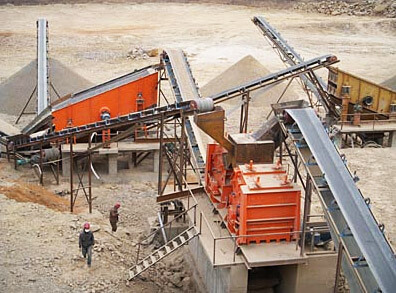

2. Material: limestone, cobblestone.
3. Capacity: 500-600TPH
4. Feedback: The pebbles and other rocks treated by the Canadian customer’s aggregate production line can meet the requirements of building materials, highways, railways, construction projects.
1. Working flow: The main crushing process step is material – screening – rough crushing – middle crushing – re-screening – fine crushing – washing sand – discharge.
2. Particle size: composition: particle size 5 ~ 50 mm pebble accounted for 5% ~ 10% of the total, particle size 50 ~ 100mm pebbles accounted for 60% ~ 70%, particle size of 100mm or more pebbles accounted for 20% ~ 30%.
JXSC stone crushing production line widely applied to the limestone, basalt, granite, cobblestone and other rocks processing operation, and provides qualified aggregate for construction material among road, railway, building, concrete, etc. The complete set of stone & rock material production circuit has the features of reliable performance, reasonable design, convenient operation and high working efficiency.
Crusher plant layout and configuration
The common stone crushing plant working flow: feeder (vibrating feeder), crusher machine (jaw crusher, impact crusher, etc), screening machine (vibrating screen), ore washing equipment, belt conveyor, and so on. according to the different needs of customer's conditions, JXSC stone production line processing capacity ranges from 50-500 tons per hour for pebbles, granite and so on hardness does not exceed 320MPa.
Less than 150MPa, vibrating feeder - high-efficiency compound crusher ( achieve required particle size at one time, hammer crusher) - vibrating screen - finished stone, using belt conveyor connect every machine.
Less than 320MPa, vibrating feeder - jaw crusher (primary crusher) - stone crusher (secondary crusher, such impact crusher, hammer crusher, sand making machine) - vibrating screen - finished sand.
Crusher plant features
1. Automatic operation. There is hardly any need of manual operation except for start-up, shutdown, and routine maintenance.
2. High production efficiency at low cost, uniform particle size and good shape.
3. Little space taking, flexible operation, low stone powder output rate.
4. Reliable, convenient, safety.
Layout and considerations
1. Select a reliable stone crusher manufacturer which has rich experience
There are many factors affecting crushing efficiency should be taken into consideration, such material characteristics, site, productivity, belt conveyor angle and length, etc. Only an experienced company can provide suited crushing line layout solutions to solve insufficient capacity, material blocking and so on problems.
2. Case reference, field investigation
Taking a visit of production line built by my company, especially those with similar capability and materials, is a good way to know JXSC quality and service, that's would be great if can bring some benefits for you.
3. Environmental protection and enemy saving
