Feeder Machines

Feeder machine is an auxiliary equipment in the transportation system. It mainly used in quarry plants, mining plants, cement, brick, chemical industry, and other industries. JXSC is a China Feeder machine manufacturers who produce and sell quarry feeder and ore feeder, such as vibrating feeder(crusher feeder), electromagnetic vibratory feeder, mining pendulum feeder, chute feeder, disk feeder.

Capacity: 30TPH-1200TPH
Feeding size: ≤1000mm

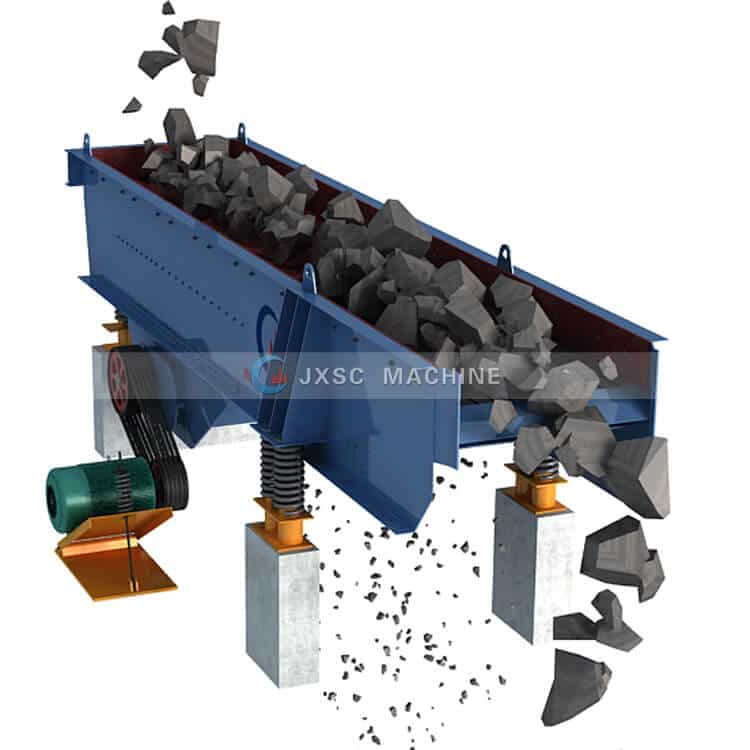

Vibrating feeder is a heavy-duty feeder which uses the vibration and gravity to push the material forward.

Capacity: 5TPH-150TPH
Feeding size: 50mm-150mm

Electromagnetic vibrating feeder is a new type of feeding equipment. It is widely used in mining, metallurgy, coal, building materials, chemical, power, grain and other industries. The bulk, granular, and powdery materials are uniformly, continuously, or quantitatively transferred from the silo or other storage equipment to the receiving equipment.

Capacity: 1TPH-50TPH
Feeding size: 0mm-50mm

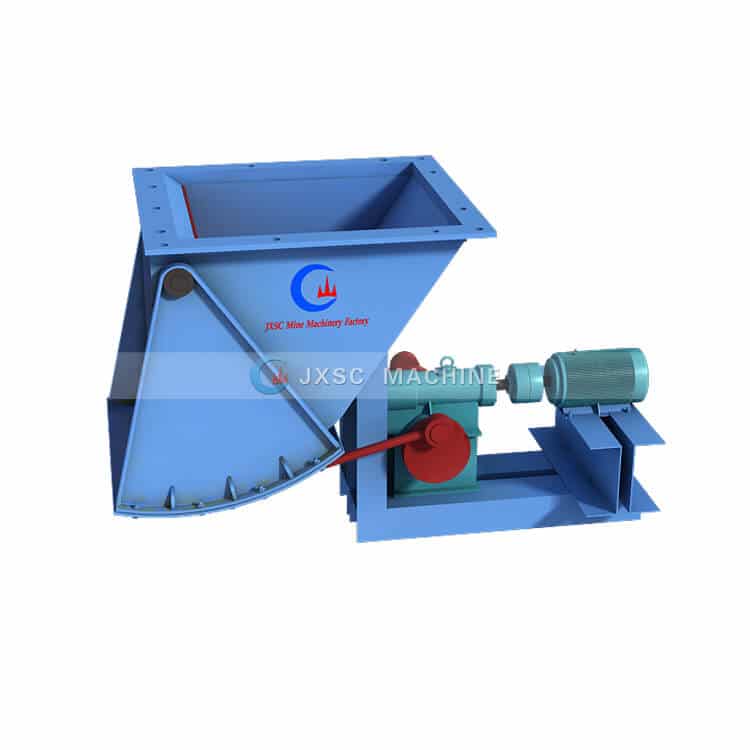

Mining Pendulum Feeder is also known as a mining pendulum feeder. It is suitable for quantitative feeding of the small size and heavy materials. The feeding size should smaller than 100mm.

Capacity: 10TPH-90TPH
Feeding size: 0mm-350mm

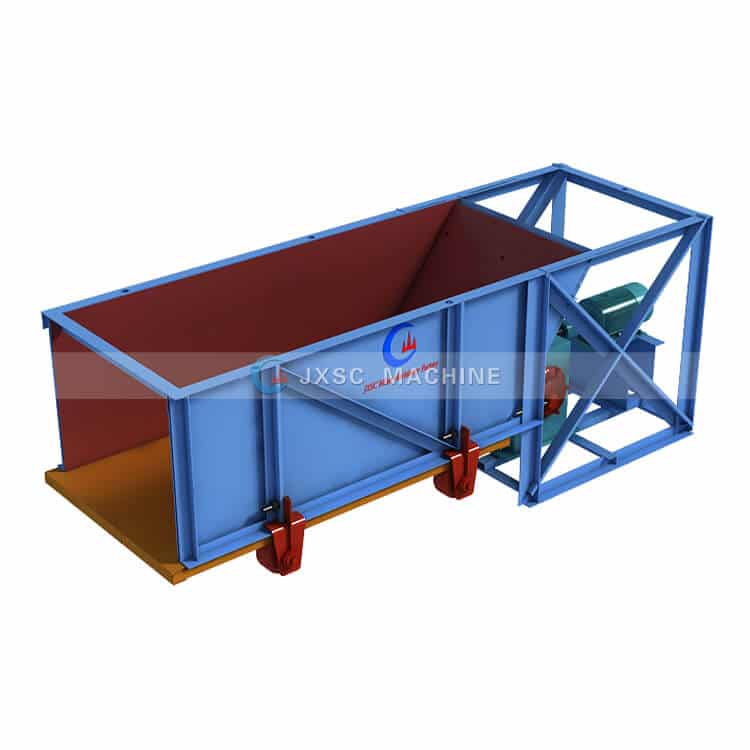

Chute Feeder is a kind of reciprocating feeding equipment with a tank bottom plate. It is also a kind of feeding equipment used earlier in ore storage tank discharging.

Capacity: 10TPH-90TPH
Feeding size: 0mm-350mm

Disk Feeder is a common feeder equipment for the non-adhesive medium and fine size materials. The size less than 80mm, such as coal, cement, clinker, limestone, shale, coal gangue, clay powder, granular or small block material.

How to operate the feeder machine

1. If the feeder machine is used for quantitative feeding, it should be installed horizontally to ensure the uniformity and stability of feeding and to prevent material flowing freely. If the general material is fed continuously, it can be installed by 10° declination. For viscous materials and materials with high moisture content, the feeder can be installed by 15° declination.

2. After the installation of the ore feeder should be left 20mm swimming clearance.

3. Before the empty machine test, we should tighten all the bolts. Especially the vibrating electromagnetic anchor bolts. It should be re-tightened when the feeder equipment continuous operation of 3-5 hours.

4. During the machine test, the two vibrating motors must rotate in the direction.

5. Check the stability of amplitude, current, and noise during operation. If the exception is found, it should be stopped immediately.

6. The magnetic bearing adds a lubricating oil every 2 months. The high-temperature season should be added once lubricating oil every monthly.
