Sand Washing Machine

JXSC sand washing machine adopts advanced technology, which has the advantages of washed sand height, reasonable structure, large output, sand recycling, and less sand loss during sand washing. Especially the transmission part isolates from water and sand. There are some impurities cover on crushed sand, natural sand, aggregate, gravel, and sea sand that need the sand washing equipment to wash. JXSC Mine Machinery Factory has two types of sand washing equipment: wheel type and spiral type.

Capacity: 15TPH-200TPH
Feeding size: ≤10
Wheel sand cleaning machine is widely used in quarry plant, mine, building materials, transportation, water conservancy and hydropower, concrete mixing station and other industries of material washing and screening.

Capacity: 75TPH-350TPH
Feeding size: <10
Screw sand washers suitable for washing, screening and removing impurities in metallurgy, building materials, water and electricity industries. Washing and selecting fine and coarse-grained materials, such as building sand and road-building sand.

Description of Sand Washer

As a kind of silica sand washing machine, also known as a stone washing machine. The equipment can remove impurities covering the surface of sand and gravel. And destroying the water vapor layer of coated sand to facilitate dehydration. The gravel washing machine plays the role of an efficient sand washing plant. The equipment is widely used in the washing, separate, and dewatering of materials in artificial sand, natural sand, mining, building materials, transportation, chemical, water conservancy and hydropower, concrete mixing stations, and other industries.

The sand washers divide into two types: spiral and wheel sand cleaner according to the structure and working principle.

Wheel sand washer

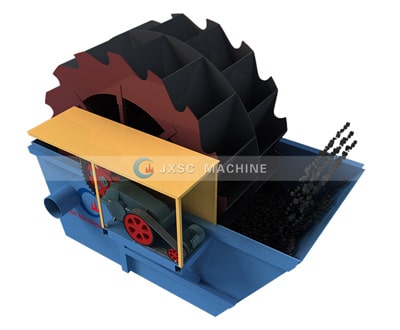

wheel sand washer equipment

The wheel sand washing equipment has a novel sealing structure and a reliable transmission device, reasonable structure, large processing capacity, low power consumption, high washing degree, and less sand loss during sand washing. The transmission part of the sand washer isolates from water and sand, and the failure rate is much lower than that of the common equipment on the market. It is an excellent choice for upgrading the domestic sand washing industry.

The working principle of the wheel bucket sand washer. When the wheel sand washer works, the motor rotates slowly through the V-belt, reducer and gear, and the impeller rotates slowly. The gravel has a feed trough into the washing tank and rolls under the impeller. And grinding each other to remove impurities covering the surface of the sand. At the same time destroying the water vapor layer of the coated sand to facilitate dehydration. Adding water to form a strong water flow, timely removing foreign matter with small impurities and specific gravity. Washing the tank from the overflow port discharge, complete the cleaning effect. The clean sand is taken away by the blades. Finally, the sand is poured from the rotating impeller into the discharge chute to complete the cleaning of the sand.

Spiral wash equipment

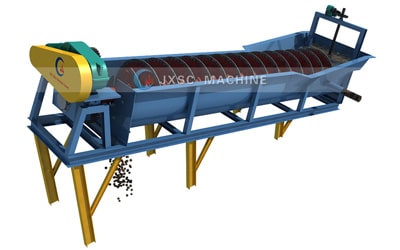

sand screw washer

Screw sand washer has the characteristics of simple structure, stable operation, clean sand washing, and high output. It is widely used in construction sites, quarry, glass factories, power station stations, concrete prefabricated stones, and electrical fields.

The spiral gravel washer forms a sedimentation tank in the lower part of the inclined water tank. Spiralhead is not inserted into the sedimentation tank. The spiral is rotated by the motor through the deceleration drive, and the cleaning water is fed from the bottom of the sedimentation tank to complete the functions of washing, dehydration and classification. Compare with the traditional spiral sand washing equipment. It has almost no wearing parts except the screen mesh during the use process. The medium-fine sand and stone powder have little loss and the service life is long.

JXSC provides a full of sand washing machine applicable to various types of sand, such as silica, aggregate, beach sand, gravel. Also, do a mobile sand plant and sand washing equipment design.
