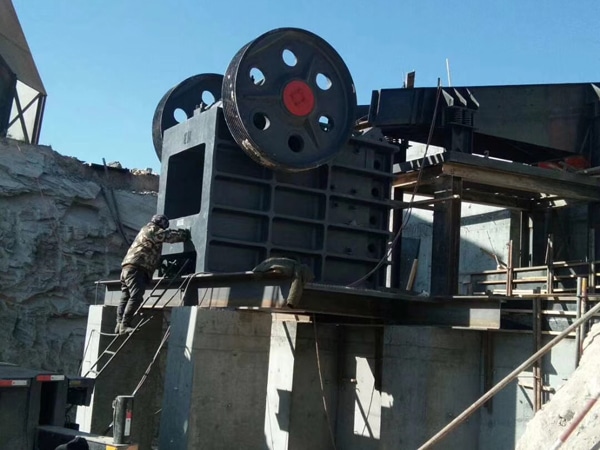

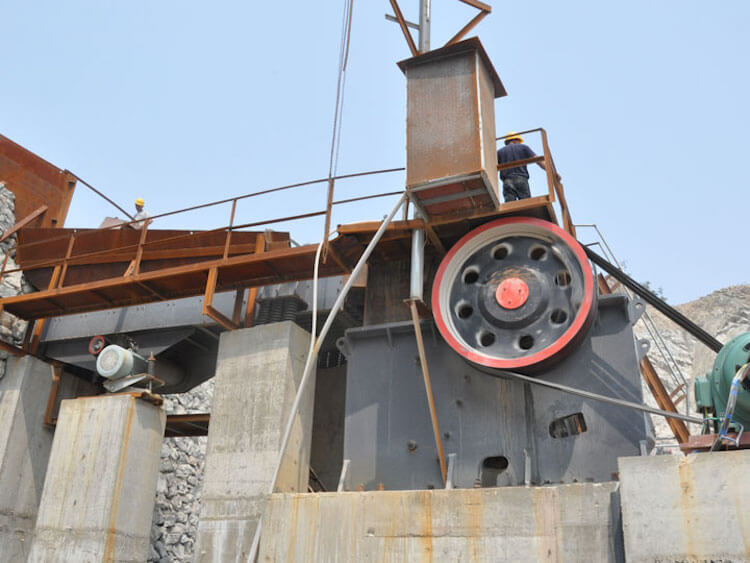

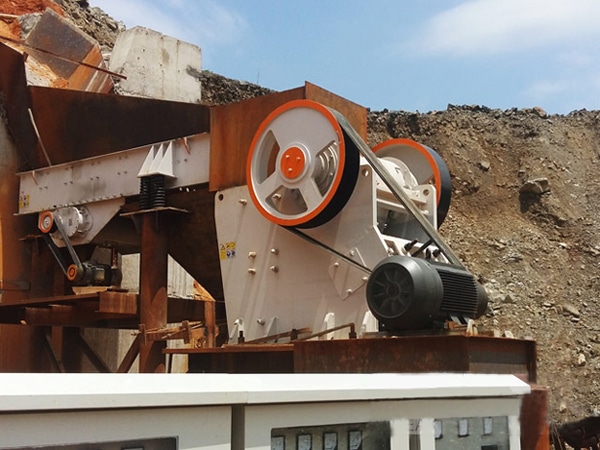

Jaw Crusher

Product Introduction
JXSC jaw type rock crusher is usually used as a primary crusher and secondary crusher to reduce the size of medium-hard materials to smaller physical size. Jaw rock crushers are capable of working with the mobile crushing station, underground crushing because of its related small volume.
Capacity: 1-1120TPH
Max Feeding Size: 120-1200mm
Application
Mining, metallurgy, building materials, quarrying, gravel & sand making, aggregate processing, recycling, road and railway construction and chemical industry, etc.
Suitable Material
Granite, marble,basalt, limestone, coal, quartz, pebble, iron ore, copper ore, etc.

JXSC Jaw Crushers Advantages

Features

40 years of manufacturing and engineering experience keep us innovative and knowledge in the rock break machines and its applications, which thus provide reliable industry rocks crushers and solutions for every customer using jaw crusher manufacturers JXSC machines to meet their production goals. The jaw crusher machine family consists of different sized models that are designed to bring maximum output with minimum cost. Some workplaces have limited conditions and are unable to provide electricity or are underpowered. According to these conditions, JXSC specially designed diesel jaw crusher. The diesel-jaw crusher is actually with electric, but the original jaw crusher was added with a diesel engine equipment that a dual-purpose crusher.

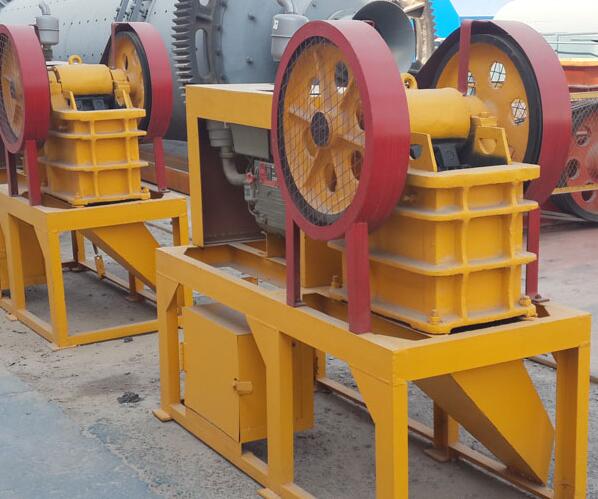

diesel engine stone crushers

  1. Simple structure, easy to use and maintain, stable performance, low operation cost, large crushing ratio.
  2. The crushing chamber deep and no dead zone improves the feeding capacity and output.
    Product particle size even.
  3. Big adjustment range, increased the flexibility of the mining machine.
  4. The lubrication system is safe and reliable, the parts are easy to replace, the maintenance workload is small.
  5. Equipment Energy Saving: single energy-saving 15% ~ 30 %, system energy saving more than double.
  6. Low Noise, little dust.

Jaw crusher parts that contain frame, movable and stationary plate, bearing, eccentric shaft, toggle jaw, flywheel, eccentric shaft, belt pulley, back-moving spring, jaw plate crusher parts.

Solid and durable property

JXSC the crushers machine with a non-welded frame has been proved that it has outstanding solid and durable strength. All the alloy casting frame components turn out that with premium quality, wear-resistant property.

Crushing performance

The design of pitman and long stoke improves productivity and reduction. A wider feeding material opening increases the volume of insulating material and makes the ore material entering the crushers crushing chamber smoothly. A sharp angle makes the materials flow down speed faster and reduces the wear cost. Besides, the strike force could be stronger thus increase the production efficiency as well as the reduction ratio.

Types of jaw crushers: on the basis of the stone break equipment size and capacity can divide into a heavy and small(mini) portable jaw rock crushers. According to the working principle can be split into single toggle and double toggle jaw rock crushers machine.

Jaw Crusher Working Principle

A series of jaw stone crushers use compressive and squeezing force for reducing materials. This physical force is created by the two jaw plates, one of which is a movable plate and another is fixed, both of them are made of manganese. A V-shaped cavity, crushing chamber, is formed and the hydraulic discharge gap width of the crushing chamber, we can determine the suited feeding material size and discharging size, the width of top feeding is larger than that of bottom discharging.

The uses of jaw crushers
Jaws machine which can as a stationary jaw crusher to crushing hard minerals, such as coal, concrete, iron ore. And it also can use in the laboratory.

Jaw Crusher Construction

Jaw crusher is a heavy-duty machine that crushes hard materials. So its hence muse be robustly constructed. Crusher frame is made from steel or cast iron. The jaws are made of cast steel. The liners are made from“Ni-hard,” Ni-Cr alloyed cast iron or manganese steel which can replaceable and use to reduce frame wear. The cheek plates are also made from hard alloy steel and installed to the sides of the crushing chamber to protect the frame from wear.

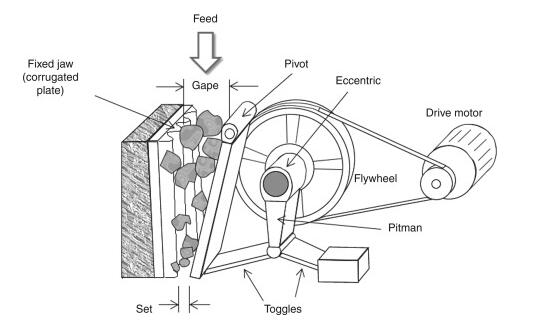

jaw crusher constructionThe jaws can be made in smooth or corrugated, but often corrugated. Because the latter crushing the hard and abrasive ores is better. The angle between the jaws is usually less than 26°. This is because a large angle will cause the particle to slip which non-crush.

It uses curved plates to avoid the near the discharge of jaw crusher blocking. The bottom of the swinging jaw is concave, and the relative lower part of the fixed jaw is convex. The materials reduction in size when nears the exit. So the material is distributed over a larger area, and the jaws plates wear less.

The type of crushed materials determines how to design the max amplitude of swing of the jaw and the amplitude adjusted by changing the eccentric. The length from 1 to 7 cm depends on the crusher machine size. Jaw crushers are supplied in sizes up to 1,600 mm (gape)×1,900 mm (width). For coarse crushing application (closed set~300 mm), capacities range up to 1200 tph.

Jaw Crusher Wear Parts

Jaw crusher parts must have some wear after a period of use, but the easily damaged parts will wear out more. The price of crushing equipment with the same specifications and handling capacity is different in the material of parts.

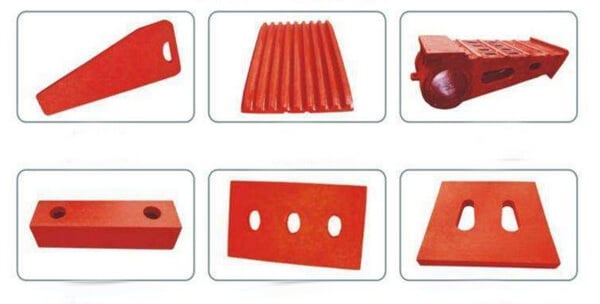

jaw crusher wear parts

Guard Plate
The guard plate is made of high-quality high manganese steel, which is located between the fixed plate and the movable plate. The whole body is mainly to protect the jaw crusher frame wall.

Toothed Plate
Tooth plate is divided into movable and fixed tooth plate, but both is made from high manganese steel casting. In order to prolong its service life, its shape is designed to be symmetrical. That is when one end of the wear can be used to turn the head. The movable and the fixed teeth plate are the main parts for stone crushing. So the movable teeth plate is installed on the movable jaw to protect the movable jaw.

Toggle Plate
The toggle plate is a cast iron piece that has been precisely calculated. It is not only a force transmission component but also the safety parts of the crusher. When the crusher falls into the non-crushing material and makes the machine beyond the normal load, the toggle plate will immediately break. Then the crusher machine stops operation, thus avoiding the damage of the whole machine. The toggle plate and the toggle plate spacer adopt the rolling contact model which less attrition under normal use. It just needs smear a layer of grease on the contact surface is ok.

Triangular Belt
When the motor transmits power, the triangle belt is connected with the pulley and the grooved pulley of the motor to drive the eccentric shaft and make the moving jaw move back and forth according to the predetermined track.

The tooth plate of the most jaw crushers are made of manganese steel, bearing linings are made of babbitt alloy, sliding blocks are made of carbon steel, toggle plates are made of cast iron, springs are made of 60SiMn. Regular Inspection and maintenance of the machine can extend its service life. In order to reduce customer costs, we will generally be in the purchase of customers are advised to buy some spare parts. Because once the parts need to be replaced, the temporary purchase will take some time. The wait time may cause the entire breakage line to suspend operations, thereby increasing operating costs.

Jaw Crusher Size and Capacity

Model Feeding
size(mm)
Max
feeding
size(mm)
Discharging
Range
size(mm)
Capacity
(t/h)
Motor
power(kw)
Weight
(t)
Overall
dimension(LxWxH)(mm)
PE-150*250 150*250 130 10-60 3-15 5.5 2.2 1000x1450x900
PE-250*400 250*400 210 20-80 5-20 15 2.8 1450x1315x1296
PE-400*600 400*600 340 40-100 16-60 30 6.65 1565x1732x1586
PE-500*750 500*750 425 50-100 40-110 55 11.73 1890x1916x1870
PE-600*900 600*900 500 65-180 80-180 55-75 16.13 2305x1840x2298
PE-750*1060 750*1060 630 80-180 110-320 90-110 28 2450x2472x2840
PE-800*1060 800*1060 680 100-200 140-340 90-110 30 2610x2556x2800
PE-870*1060 870*1060 750 170-270 180-360 90-110 31.22 2660x2556x2800
PE-900*1060 900*1060 780 200-290 200-380 90-110 31 2690x2556x2800
PE-900*1200 900*1200 780 95-225 220-450 110-132 49 3335x3182x3025
PE-1000*1200 1000*1200 850 195-280 280-550 110-132 51 3435x3182x3025
PE-1200*1500 1200*1500 1020 150-300 400-800 160-220 100.9 4200x3732x3843
PE-1500*1800 1500*1800 1200 210-360 525-1120 280-335 132 5100x4700x4300
PEX-150*250 150*250 125 10-40 1-3 5.5 2 896x745x935
PEX-150*750 150*750 120 18-48 8-25 15 3.5 1380x1658x1025
PEX-250*750 250*750 210 25-60 13-35 30 4.96 1545x1667x1330
PEX-250*1000 250*1000 210 25-60 16-52 30-37 6.5 1530x1992x1380
PEX-250*1200 250*1200 210 25-60 20-61 37-45 1900x2192x1430
PEX-300*1300 300*1300 250 20-90 25-95 55-75 1750x2320x1724
PEX-350*1200 350*1200 300 70-140 25-120 75 2162x2220x1723

Jaw Crusher vs Impact Crusher

In short, the jaw stone crushers are mainly used for primary crusher, the crushing stone is relatively large. The types of crusher machine's chamber are deep and no dead zone. It improves that the feeding capacity and output. The crushing ratio is large and the product particle size is even. Shim type outlet adjustment device, reliable and convenient, large hydraulic adjustment range that increased the flexibility of the equipment. Simple structure, reliable work and low operation cost. The adjustment range of hydraulic discharge opening is large, which can meet the requirements of different users, low noise and less dust.

Impact crusher for crushing medium-hard stones, and mostly used for secondary crusher. The impact crushers have a big feeding port, high crushing cavity, high material hardness, big block size and little stone powder. Convenient maintenance, economic and reliable, high comprehensive benefit.
