Jaw Crusher – Single Toggle vs Double Toggle

Which jaw crusher better single toggle or double toggle? If you want to buy the jaw crusher machine, this article will help you to know the equipment.

Jaw crushers are heavy duty machines and hence need to be robustly constructed. The movable jaw and static jaw are made up of the crushing chamber. It stimulates the movement of the two jaws of the Animal and completes working. Widely used in mining smelting, building materials, roads, railways, water conservancy, and chemical industries in a variety of ore and large pieces of material crushing. The classification of Jaw crusher: single toggle jaw crusher, double toggle jaw crusher, hydraulic jaw crusher, impact jaw crusher, mobile jaw crusher, etc. Which jaw crusher better single toggle or double toggle.

Difference Between Single and Double Toggle Jaw Crusher

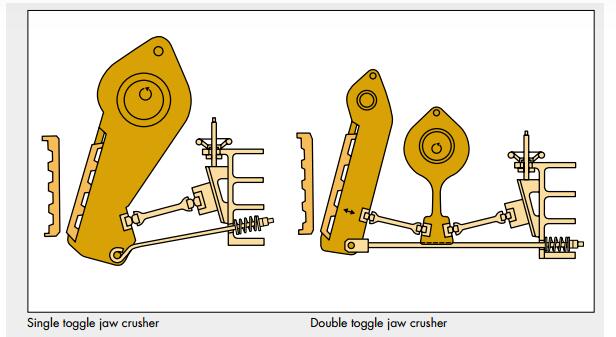

Single toggle jaw crusher

The movable jaw is suspended from the mandrel and swings from side to side. When the eccentric axis rotates, the connecting rod moves up and down. And drives the two thrust plates to move back and forth as well. Thus pushing the jaw to move left and right to move back and forth, realizing crushing and discharging.

This kind of crusher adopts a crank two-bar linkage mechanism. Although the moving jaw is subjected to a great crushing reaction. Its eccentric shaft and connecting rod are subjected to a little force. So it is often made into large and medium-sized machines for crushing hard materials in the industry. In addition, when the crushers work, the movement track of each point on the moving jaw is a circular arc with the center of the center axis.

The radius of the circular arc is equal to the distance from the point to the axis. The upper arc is small, the lower arc is large, and the crushing efficiency is low. The fragmentation ratio is generally 3-6. Because the movement track is simply so-called a single toggle jaw crusher. The structure of the single – toggle jaw crusher is compact and simple, and the force of transmission parts such as eccentric shaft is small. The vertical displacement of the movable jaw is small, the material is less excessively broken and the wear of movable jaw plate is small.

Difference Between Single & Double Toggle Jaw Crusher

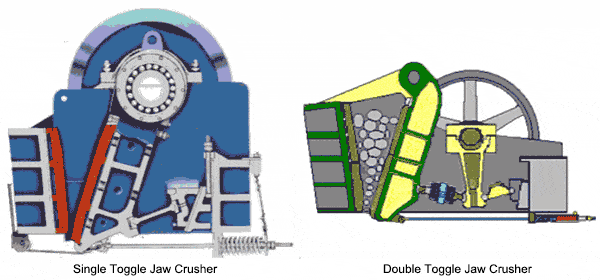

Double toggle jaw crusher

The upper end of the movable jaw is directly suspended on the eccentric shaft. As the connecting rod of the crank connecting Rod mechanism, the lower end of the movable jaw is supported on the back wall of the frame by the thrust plate. When the eccentric axis rotates, the track of each point on the movable jaw is from the circumference line of the suspension point (the radius is equal to the eccentric distance), and gradually becomes an ellipse. The movement track of each point on moving jaw is more complex in this kind of machine, so it is called a double toggle jaw crusher.

Compared with the single toggle jaw crusher, the double-toggle jaw crusher has the following advantages: less weight, fewer components, more compact structure, a better filling degree in the crushing chamber, even crushing of the loaded material block, and forced unloading of the finished product by moving the lower jaw. Therefore, productivity is higher, 20-30% higher than that of the single-toggle of the same specification. And the material block has a bigger up-down rolling motion in the lower part of the moving jaw, so it is easy to be discharged in the shape of a cube.

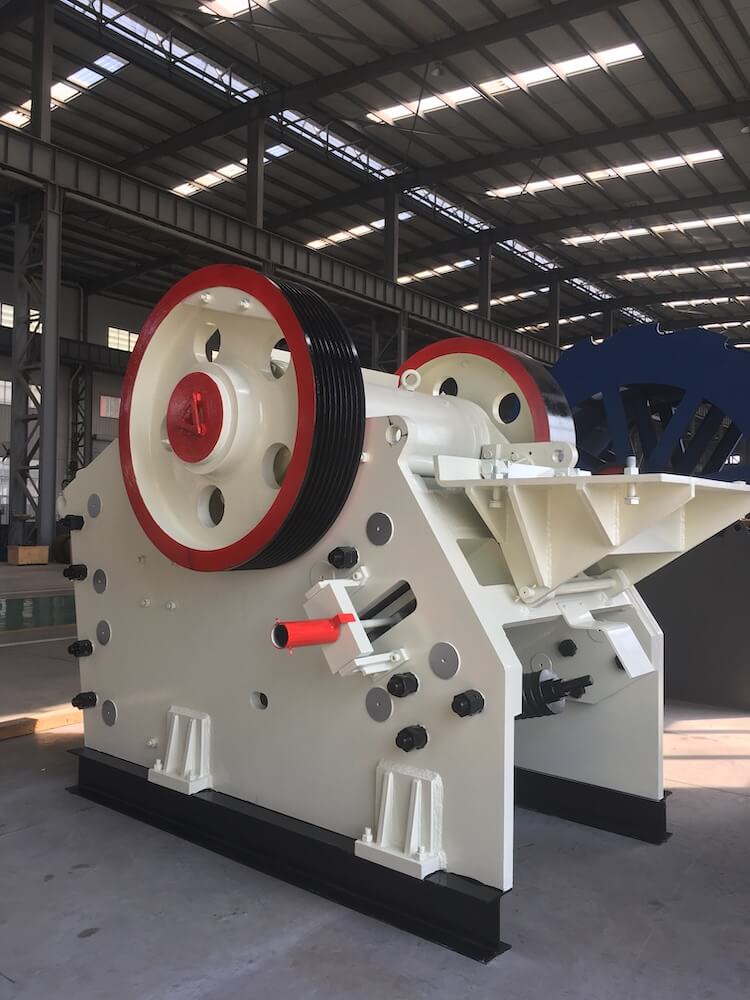

Jaw Crusher

How to choose a jaw crusher

First of all, the choice of the crusher machine is determined by the size of feeding and discharging. The feeding degree, product size is coarse, choose the big jaw crusher or more coarse, otherwise use medium and fine. In the calculation of feed size, the maximum open-side feed size is multiplied by 0.85. And the average size of the product is calculated by dividing the maximum feed size by the crushing ratio. In general, the feed size distribution of jaw crushers cannot exceed 10 %. If more than 10 %, the power consumption will increase and the product size will become flaky.

Secondly, when choosing the liner of jaw stone crushers equipment, the user must consider three factors: output, power consumption and wear resistance of liner. In general, the following principles should be followed: maximum feeding size, size change, the size distribution of feeding, the hardness of a material, Abrasion Resistance of materials. The longer the jaw crusher liner, the higher the power consumption, hard materials choose short liner, soft materials choose longliner. In the distribution of materials, thin materials choose short liner, coarse materials choose longliners.

Finally, the crusher in the work, feeding to uniform, can not segregation. If the uneven feeding will occur production capacity reduction, product size is too large, frequent spring action, bowl-shaped bearing pressure, power consumption rise. And it must have iron remover to prevent crushing chamber over iron. If frequent over iron, it may cause shaft broken accident. The moisture content of viscous materials can affect the amount of material through. In terms of moisture content of materials, generally not more than 5 %. In the use of power: Standard stone crusher should reach 75% ~ 80 %, short head crusher should reach 80% ~ 85 %.

JXSC mine machinery factory has jaw crushers for sale. If you want our jaw crushers price list, please contact us.
