Disk Feeder

ore disk feeder

JXSC Disk Feeder is common feeder equipment for the non-adhesive medium and fine size materials. The size less than 80mm, such as coal, cement, clinker, limestone, shale, coal gangue, clay powder, granular or small block material. Dick feeders are widely used in the industries of mining, metallurgy, coal, building materials, chemistry, etc.

【Capacity】: 1-90 TPH
【Feeding Size】: Max 80mm

JXSC Disk Feeder Advantages

hopper disk feeder

The disk-type feeders divide into DK, DB, KR, BR, and the motors have alternating current dynamo and adjustable-speed motor. The ore disk feeder is composed of a driving device, feeder body, metering belt conveyor and metering device. The feeder and the belt conveyor are driven by a set of driving devices, whose electromagnetic clutch has the function of opening, stopping and function conversion of the feeder. It can feed the material to the next working procedure uniformly and continuously.

  1. Simple structure, reliable operation, and convenient installation
  2. It can fully operational
  3. Light Weight, small size
  4. Long service life and convenient maintenance

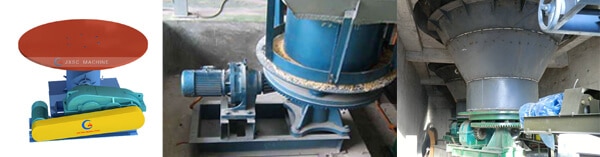

ore mining disk feeder

How Disk Feeder Works

The bulk material is loaded into the receiving cylinder from the hopper, and the material is piled up on the disc without the wall of the receiving cylinder by its own weight. By adjusting the clearance between the sleeve and the disc by adjusting the bolt, the natural heap angle of the material on the disc can be controlled.

When the disc rotates, the material is evenly scraped to the outside of the disc by the discharge knife on the disc. With the disc rotates, the material is uniformly scraped into the receiving hopper by the unload knife. The disc operates continuously to achieve a uniform feeding operation. Adjust the gap between the unload knife and the disc, it can control the amount of feed. When working, the motor drives the disc mounted on the worm gear reducer to rotate through the belt pulley.

Specification of Disc Feeder

Model Disk Diameter Rotate Speed(r/min) Max.feeding size(mm) Power (kw) Capability (t/h) weight(kg)
YG600 D600 10 <25 1.1 1.8-4 410
YG800 D800 9 <30 1.5 3.5-7.6 600
YG1000 D1000 9 <40 2.2 1.8-16.7 800
YG1300 D1300 9 <50 3 4-28 1110
YG1600 D1600 7 <60 4 7-49 1980
YG1800 D1800 7 <70 5.5 9-60 3070
YG2000 D2000 7 <80 5.5 14-88 3260

JXSC Other Series Feeder Machine

jxsc electromagnetic vibrating feeders

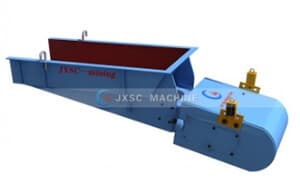

Electromagnetic Vibrating Feeder

jxsc chute feeders

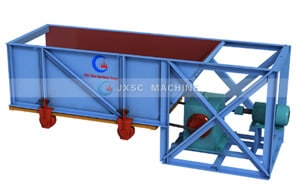

Chute Feeder

jxsc pendulum feeders

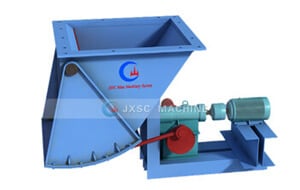

Pendulum Feeder

jxsc vibrating series feeders

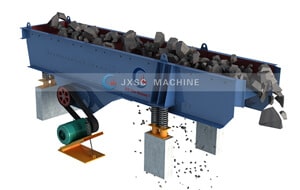

Vibrating Feeder
