200-300TPH Gabbro Crusher Plant In Katar

200-300TPH gabbro crusher plant information

Material: Gabbro(hard rock)
Capacity: 200-300TPH
Customer mine Country: Katar
Feed size: <800mm
Output size: 0-5mm,5-10mm,10-20mm,20-40mm

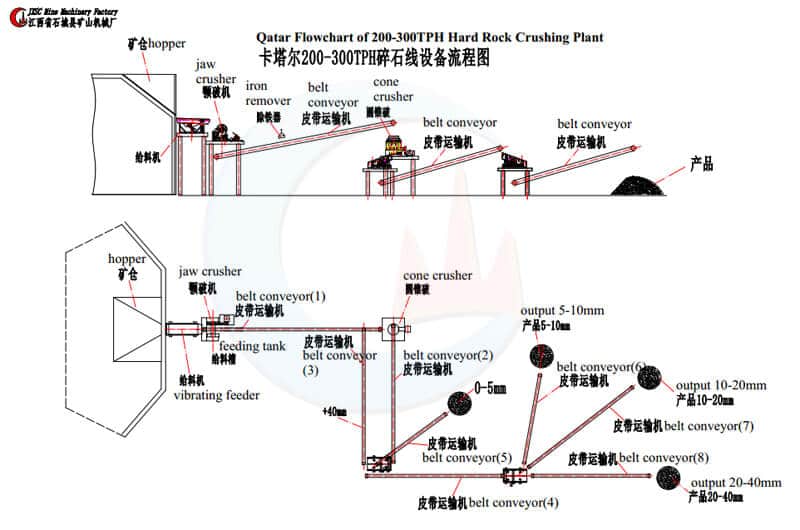

Flowchart of 200-300TPH Hard Rock Crushing Plant

Flowchart of 200-300tph gabbro crushing plant



200-300TPH Gabbro Crusher Plant Equipment List
1. Vibrating Grizzly Feeder: DN600*130
2. Primary jaw crusher: PE-900×1200
3. Secondary Compound Cone Crusher with hydraulic oil station: DN1650Z-D
4. Circle Vibrating Screen: 2YD2160*2
5. Electric control cabinet( for controlling the whole production line)
6. Self-discharging iron remover: RCDB-10
7. Belt conveyor with 18 meters long. (transport from primary jaw crusher PE-900×1200 to Compound Cone Crusher DN1650Z-D)
8. Belt conveyor with 16 meters long (transport from Compound Cone Crusher DN1650Z-D to Circle Vibrating Screen: 2YD2160)
9. Belt conveyor with 21 meters long (transport from Circle Vibrating Screen 2YD2160 to Compound Cone Crusher DN1650Z-D for re-crushing)
10. Belt conveyor with 18 meters long (product output under the Circle Vibrating Screen 2YD2160 to next Circle Vibrating Screen 2YD2160 )
11. Belt conveyor with 15 meters long(transport four kinds of output)

Notes:
1. Services (installation, test run, training):
The supplier can provide basic drawings and schematic drawings of equipment installation. The domestic technicians will be provided for free to guide installation and debugging, and the buyer will provide technicians with room and board. The buyer shall prepare the necessary auxiliary materials for installation.

2. Quality guarantee:
The equipment is guaranteed for one year. In the warranty period, due to the quality of the product manufacturing, manufacturers free warranty (except wearing parts).
