In today’s rapidly urbanizing world, the construction industry significantly contributes to waste generation, with vast amounts of construction and demolition (C&D) waste produced yearly. If not managed properly, this waste will impact the environment, including increased landfill use, pollution, and depletion of natural resources. Recycled aggregate has become an essential aspect of sustainable construction practices. This article will provide a detailed overview of recycled aggregate, the design of its production process, the necessary equipment for a recycled aggregate production line, and the benefits of using recycled aggregates in construction.
What is Recycled Aggregate?
Recycled aggregate refers to materials obtained by processing waste from old concrete, bricks, asphalt, and other construction debris to create new sand and gravel aggregates suitable for use in construction. These materials are derived from:
- Old Concrete: Breaking demolished concrete structures into smaller fragments.
- Brick Debris: Waste bricks from construction or demolition sites are crushed and processed.
- Cement Blocks: Broken cement blocks from old buildings can also be recycled.
The recycling process transforms these waste materials into usable aggregates applied in various construction applications, such as:
- New Concrete Production: Recycled aggregate can replace natural aggregates in concrete mixes.
- Road Base Material: It can be used as a base layer for roads and other infrastructure projects.
- Landscaping: Recycled aggregates can be used in landscaping applications to create decorative features.
Recycled aggregate is an environmentally friendly alternative to virgin materials, helps reduce construction costs, and promotes resource conservation.
How to Design Process of Recycled Aggregate?
The production process of recycled aggregate involves several steps, each crucial for ensuring the quality and usability of the final product. Here’s a detailed breakdown of the process and its design considerations:
2.1 Pre-screening
- Purpose: To conduct preliminary sorting of construction waste, removing large impurities and substandard materials.
- Design: The initial step involves using a vibrating screen or a pre-screening machine to separate oversized materials from the waste stream. The design of the screening equipment should allow for efficient sorting and minimize wear and tear on subsequent processing machines. The choice of screen hole size is crucial, as it determines the effectiveness of impurity removal while allowing finer materials to pass through.
2.2 Crushing
- Purpose: To reduce the size of the pre-screened waste material, facilitating subsequent sorting and processing.
- Design: The crushed material must meet specific size requirements for effective separation and further processing. Jaw crushers are commonly used for primary crushing, as they can handle large waste. Impact crushers may follow for secondary crushing to meet desired specifications. The design of these crushers should consider factors such as feed size, desired output size, and production capacity.
2.3 Magnetic Separation
- Purpose: To remove metal impurities from concrete and brick materials, ensuring the purity of recycled aggregate.
- Design: After crushing, magnetic separators extract ferrous metals (e.g., rebar, wire) from the crushed material. The design of the magnetic separator should include adjustable magnetic field strength and proper material flow rates to maximize the efficiency of metal removal. The conveyor system can facilitate the smooth transfer of materials through the magnetic separation stage.
2.4 Separation
- Purpose: To further separate components from the crushed mixture and extract reusable aggregates.
- Design: Airflow separators or density-based separation systems can distinguish between light impurities (like plastics or wood) and heavier aggregate materials. The design should promote effective separation based on the physical properties of the materials, ensuring that the final aggregate is of high quality and free from contaminants.
2.5 Screening
- Purpose: To screen the separated materials and obtain recycled aggregates of different particle sizes.
- Design: A multi-layer vibrating screen is used for this purpose. The design should allow for multiple screening levels, enabling the classification of aggregates into various sizes to meet different construction requirements. Proper maintenance of screens and regular monitoring for wear are essential to ensure consistent performance.
2.6 Washing (Optional)
- Purpose: Clean recycled aggregates, removing surface dust and impurities.
- Design: Washing can improve the quality of recycled aggregates. A sand washing machine or high-pressure water system can clean the aggregates. The design should incorporate a closed water system to recycle water used in the washing process, reducing water consumption and minimizing environmental impact.
2.7 Drying (Optional)
- Purpose: To dry the washed recycled aggregates and ensure they meet moisture content specifications.
- Design: A suitable drying system, such as a rotary or conveyor dryer, can be integrated into the production line. The design should allow controlled temperature and airflow to ensure drying without damaging the aggregates. Effective drying is essential for applications where moisture content can affect the performance of concrete mixes.

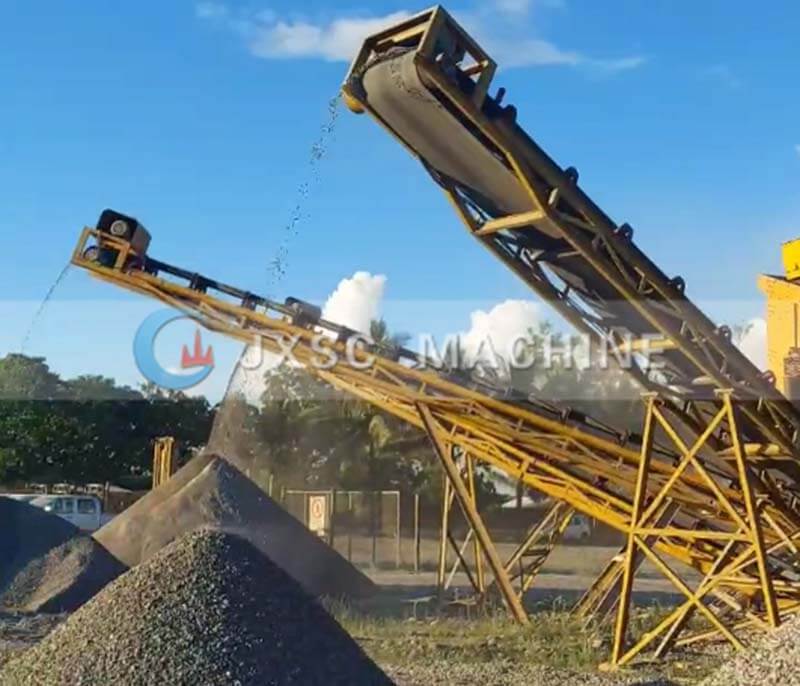

2.8 Storage and Transportation
- Purpose: To store and transport the processed recycled aggregates for convenient subsequent use.
- Design: Storage silos or bins should allow for easy access and efficient loading of aggregates for transportation. Conveyor belts can transport aggregates from one processing stage to another, minimizing manual handling and improving operational efficiency.
Recycled Aggregate Production Line Equipment
A well-designed recycled aggregate production line incorporates various equipment to ensure the processing of waste materials. Below are the main equipment types:
- Vibrating Screen/Pre-screening Machine: This equipment is essential for initial sorting, removing oversized impurities, and preparing the waste material for crushing.
- Jaw Crusher: Used for primary crushing, this machine reduces large blocks of concrete and brick to a manageable size.
- Impact Crusher: Employed for secondary crushing, it further reduces the size of the material to meet specific grading requirements.
- Magnetic Separator: This device removes ferrous metal contaminants to ensure the purity of the final recycled aggregate.
- Airflow Separator: Used for separating lighter materials from heavier aggregates, enhancing the quality of the recycled product.
- Vibrating Screen/Multi-layer Screening Machine: This equipment screen aggregates into various particle sizes based on specific application needs.
- Sand Washing Machine: Utilized to remove dust and impurities from the recycled aggregates, improving their overall quality.
- Dryer: A dryer removes excess moisture from the aggregates to meet the required specifications.
- Storage Silos and Transportation Equipment: These are essential for the efficient storage, handling, and transportation of recycled aggregates.
The Benefits of Using Recycled Aggregate
The use of recycled aggregate in construction offers numerous advantages:
- Environmental Benefits: Recycling construction waste reduces landfill usage and the environmental impact associated with extracting and processing natural resources. This practice helps conserve natural habitats and reduces carbon emissions from material transportation.
- Economic Advantages: The cost of recycled aggregates is often lower than virgin materials, leading to significant savings for construction projects. Additionally, using recycled materials can help companies meet green building certification requirements, potentially increasing their competitiveness in the market.
- Resource Conservation: Recycling aggregates helps conserve natural resources by reducing the demand for new materials. It is essential in areas facing resource depletion.
- Regulatory Compliance: Many regions have implemented regulations promoting sustainable construction practices. Companies can comply with these regulations and contribute to a circular economy.
Conclusion
The production process of recycled aggregate is a vital component of sustainable construction practices, providing an effective method for managing construction waste while promoting resource conservation.
As technology continues to evolve and the demand for sustainable building practices increases, the role of recycled aggregates will only grow. By incorporating recycled materials into construction projects, we can significantly reduce our environmental footprint and work toward a more sustainable future. It is essential for industry stakeholders to recognize the importance of recycling construction materials and to invest in the necessary infrastructure and technology to facilitate this transition.
