Sand Washing Plant Process Flow and Equipment

The demand for clean, high-quality sand is critical in the mining and construction industries. Sand-washing plants are vital in removing impurities and ensuring the final product meets stringent industry standards. This blog post will delve into the process flow of a sand-washing plant, detailing the equipment involved and the steps taken to produce clean sand. We will explore the benefits of sand washing and how it contributes to various applications across different sectors.



What is a Sand Washing Plant?

A sand-washing plant processes sand and aggregates to remove impurities like clay, silt, and dust. The primary goal of the plant is to produce high-quality sand for various applications, including construction, concrete production, and glass manufacturing. The plant typically includes several pieces of equipment that work together efficiently to achieve this goal.

Importance of Sand Washing

The sand wash process is essential for several reasons:

  • Quality Control: Clean sand is crucial for construction and concrete production, as impurities can weaken the final product.
  • Regulatory Compliance: Many industries are subject to strict environmental regulations regarding the quality of materials used.
  • Market Demand: The construction and manufacturing industries often require sand that meets specific grading and quality standards.



Key Equipment in a Sand Washing Plant



Feed Hopper:

The feed hopper receives raw sand and aggregates. It holds a substantial volume of material and ensures a steady flow to the subsequent processing equipment.

Vibrating Feeder:

This equipment delivers a controlled flow of materials from the feed hopper to the washing equipment. It helps to prevent material blockages and ensures an even feed rate.

Sand Washer:

The heart of the sand washing plant, sand washers come in various types, including:

  • Wheel Type Sand Washer: This uses a wheel to lift and wash materials in a rotating drum.
  • Screw Type Sand Washer: Utilizes a screw mechanism to agitate and wash the sand.
  • Hydrocyclone: Separates particles based on size and density, effectively removing finer impurities.

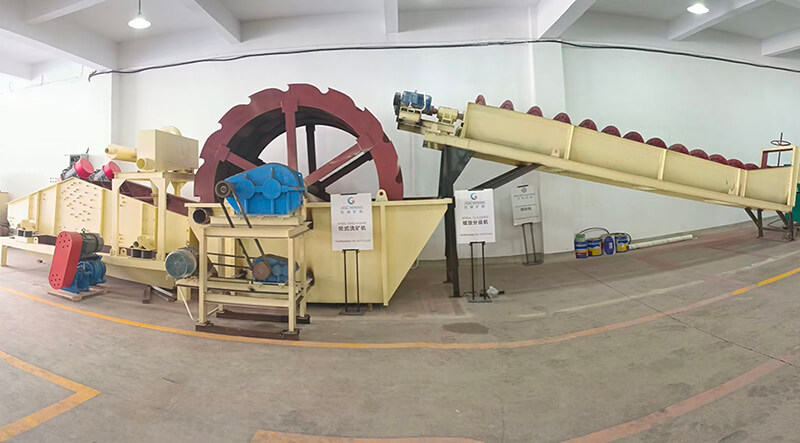

sand washing plant machine
sand washing plant machine

Dehydration Screen:

After washing, the sand is often wet. The dehydration screen removes excess water, ensuring the final product is at the appropriate moisture level for handling and transportation.

  • Fine Sand Recovery Unit:

This unit captures fine particles that may lost during the washing process. It recycles water and reintroduces fines back into the production cycle.

  • Stockpile Conveyor:

The stockpile conveyor moves the washed and dried sand to a designated storage area. It is essential for managing the flow of finished products.



Process Flow of a Sand Washing Plant

Step 1: Material Feeding

The process begins with the feed hopper, where raw sand and aggregates are loaded. The hopper handles varying volumes of material and ensures a consistent supply of washing equipment. Proper loading techniques are essential to avoid materials segregation and ensure uniformity in the washing process.

Step 2: Controlled Feeding

Once the material is in the hopper, it moves onto the vibrating feeder. This equipment regulates the flow of sand, ensuring that the washing equipment receives a steady and controlled input. The feeder also helps to eliminate any large clumps of material that could disrupt the washing process. Its vibration helps break apart aggregates and ensures the particles move smoothly toward the next stage.

Step 3: Washing

The washed sand then enters the sand washer. Depending on the type of washer used, the washing process can vary significantly:

  • Wheel Type Sand Washer: The wheel rotates, lifting sand into the washing chamber, where high-pressure water jets break down clumps of dirt and clay. The sand is then rinsed and discharged through a designated outlet.
  • Screw Type Sand Washer: The screw mechanism rotates and pushes the sand through water, which helps to remove impurities. The cleaned sand is discharged at the top, while the water and finer particles flow from the bottom.
  • Hydrocyclone: This equipment uses centrifugal force to separate fine particles from the sand, washing away silt and clay. The clean sand exits from the bottom, while the fines are for further processing.

Step 4: Dewatering

After washing, the sand is still wet. The next step involves the dehydration screen, removing excess water. This screen utilizes vibration and gravity to separate water from the sand, resulting in a drier product that is easier to handle. Efficient dewatering is critical as excessive moisture can lead to handling difficulties and increased transportation costs.

Step 5: Fine Sand Recovery

The fine sand recovery machines will minimize material loss in the process. This unit captures fine particles (typically less than 75 microns) and recycles water. The recovered fines are the sand product, ensuring all material is utilized. By integrating this unit, operators can significantly improve the overall yield of the sand-washing operation.

Step 6: Final Stockpiling

After washing and drying, it goes to a designated area for storage via the stockpile conveyor. This conveyor system is crucial for managing the flow of finished products and ensuring that the sand is readily available for shipment or further processing. Proper stockpiling techniques are essential to maintain the quality of the sand and prevent contamination.



Benefits of a Sand Washing Plant

Investing in a sand-washing plant provides numerous benefits:

  • Improved Product Quality: Sand washing plants significantly enhance the quality of sand by removing impurities, resulting in a product that meets industry specifications and enhances the durability of concrete and other applications.
  • Increased Efficiency: The continuous flow of materials through the plant allows for high throughput and efficient processing, reducing production time and costs. This efficiency translates into greater profitability for operators.
  • Environmental Sustainability: Modern sand washing plants often incorporate water recycling systems, minimizing water consumption and reducing environmental impact. This feature is increasingly important as industries face stricter regulations on water usage.
  • Versatility: A sand washing plant can be adapted for various applications, making it suitable for different industries, including construction, mining, and manufacturing. The ability to produce different grades of sand ensures that operators can meet diverse customer needs.
  • Cost-Effectiveness: By recovering fine materials and recycling water, sand-washing plants can lower operational costs while maximizing output. This makes them a wise investment for businesses looking to enhance their competitive edge.



Conclusion

  • The process flow of a sand washing plant involves several critical steps and pieces of equipment that work together to produce high-quality sand. From the initial feeding of raw materials to final stockpiling, each stage plays a vital role in ensuring the operation efficiency. As the demand for clean sand continues to grow, investing in a well-designed sand-washing plant can improve product quality, operational efficiency, and environmental sustainability.
  • Manufacturers can optimize their operations and deliver superior products to their customers by understanding the intricacies of sand washing processes. Whether you are in the construction industry or involved in material production, a sand washing plant is an essential component of achieving high-quality results.
  • In conclusion, the evolution of sand-washing technology and processes reflects the industry’s commitment to quality, efficiency, and sustainability. As we move forward, continued advancements in equipment will further enhance the ability to produce clean sand, meeting the ever-growing demands of the modern world.



We accept customization for more models to meet the requirements of different customers. The price of the mining equipment will determined by the manufacturer’s type, machine model, manufacturing process capacity, etc. We can provide various mining equipment like stone crushers, etc. Welcome to consult JXSC‘s professional engineers to get the quotation based on your requirements. We can design a sand-making and crushing production line flow chart for you.
