The vibrating feeder is a machine for transporting materials from storage equipment to following processing equipment. This machine plays a role in continuously and accurately supplying materials to the following equipment in mining production. There are different types of vibrating feeders. The following is a brief explanation of several common vibrating feeders.
5 Types Of Common Mining Vibrating Feeder

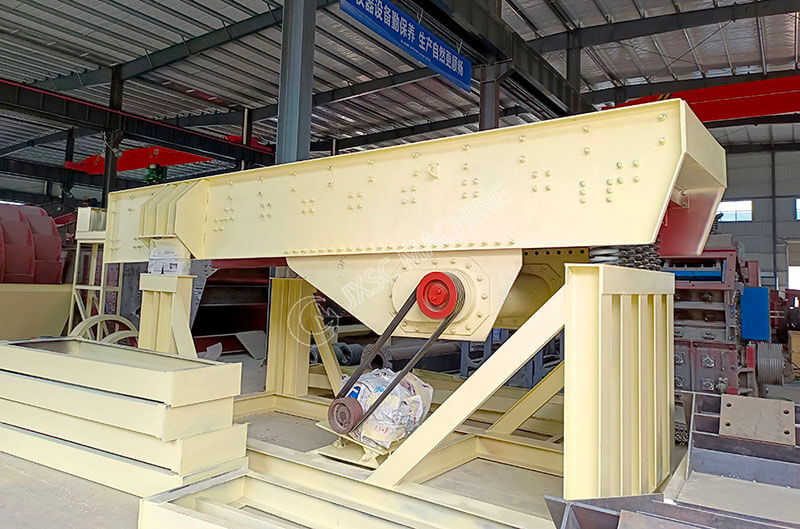

1. Vibrating Feeder With Grizzly Bar
The vibrating feeder is widely used in sand and gravel production lines to uniformly feed material to crushing machines. It is widely configured with crushing and screening equipment in industries such as metallurgy, coal mining, mineral processing, building materials.
Application
- This equipment is mainly used for mining processing plants with a processing capacity of>40-50 TPH, feeding materials with relatively large particle sizes evenly to the following equipment.
- This machine usually with a grid sieve strip, initially screens out the large stones. The spacing between the sieve bars is adjustable according to the material situation and customer requirements. The spacing between the sieve bars in the mineral processing line is 50-75mm. The crushing processing line has a larger spacing, such as 100mm.
- It is commonly used in sand ore processing lines with large capacities, such as 50TPH, 100TPH, 200TPH gold, diamond, and tin processing lines. Feeding is the first step for various rock minerals in the sand crushing and processing line. It usually requires a hopper in the front, and supporting equipment is a jaw or impact crusher, trommel washing machines, etc.
Advantages
- Stable vibration and reliable operation
- The gap between the bars is adjustable
- There are many wear-resistant parts
- Unique grid design can prevent material blockage

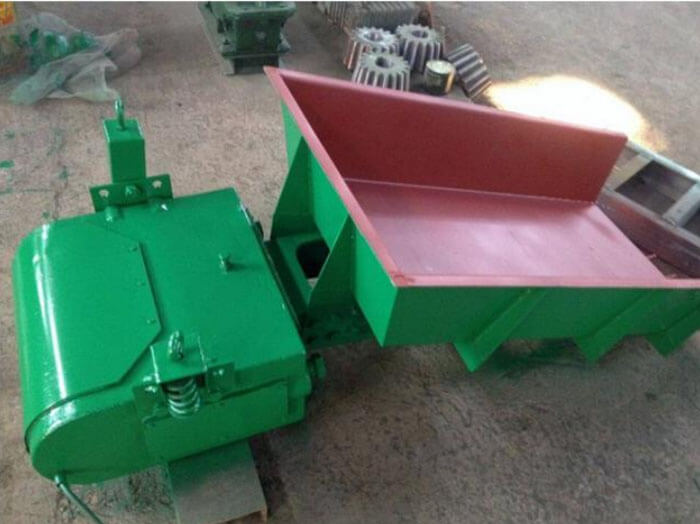

2. Electromagnetic vibrating feeder
The electromagnetic vibrating feeder is for uniformly or quantitatively supply materials from storage bins to the following machine. It has wide applications in mining, metallurgy, coal, electricity, chemicals, food, glass, refractory materials industries, etc.
Application
It is suitable for processing materials with particle sizes less than 20-30mm, and the processing capacity can be large or small. This machine feeds sand and minerals (such as silica sand, beach sand, zircon sand, etc.), which are often used in front of the ball mill and evenly fed to the ball mill. This vibrating feeder is suitable for processing lines with ball mills in rock mineral processing lines such as rock gold, copper, and tantalum-niobium tin ore. The hopper is usually in front of the vibrating feeder, and the back is a belt conveyor.
Advantages
- The electrical control of the electromagnetic vibration feeder adopts a half-wave rectification circuit. It can infinitely adjust the feeding amount and be applied in automatic control to achieve automatic production.
- No rotating parts, no need for lubrication, simple structure, and easy maintenance.
- The material of the electromagnetic vibrating feeder is microthrowing motion, resulting in minimal wear on the material trough.
3. Swing feeder
It is suitable for processing materials with small production capacity and feed particle size less than 20-30mm in front of ball mills. The processing lines with ball mills in rock mineral processing lines such as rock gold, copper, and tantalum-niobium tin ore will adopt this chute feeder.
Advantages
- The swing feeder has a simple structure, easy installation, stable performance, no vulnerable parts, and a long service life.
- The swing feeder does not require too many workers to operate and guard during use, as the equipment adopts a computerized control method, greatly improving the automation program of the equipment and reducing labor costs.
- The excitation force is adjustable, and the vibration motor has low noise, low energy consumption, easy installation, small footprint, and convenient maintenance.
- The accessories of the swing feeder are made of highly wear-resistant materials with heat technology, greatly extending the usage rate of the accessories.

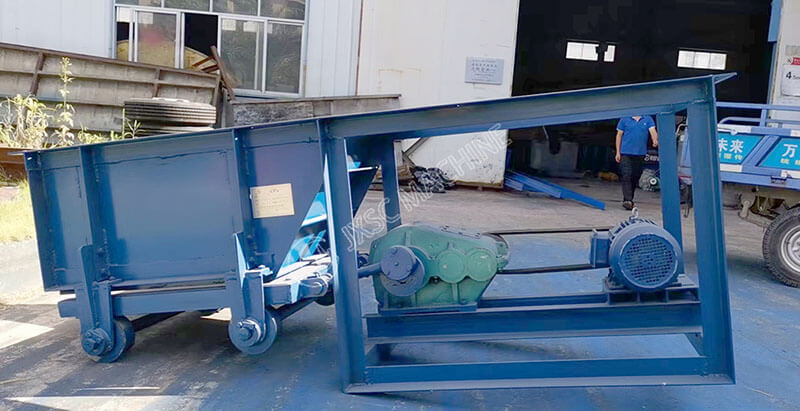

4. Chute feeder
Chute feeder is a good choice for materials with a processing capacity smaller than 40-50TPH and a feeding particle size of medium size (stones less than 350mm). It is suitable for small-capacity rock ore processing plants (rock gold, copper, tungsten-tin ore, quartz stone) or stone-crushing plants. The front usually requires a material hopper, and the supporting equipment at the back can be a jaw crusher, hammer crusher, impact crusher, roller crusher, etc. It has wide applications in mineral processing, coal, chemical, and other industrial sectors. This machine transports granular and block materials from storage bins and sends them to various receiving equipment. However, it is unsuitable for conveying powder concentrate and other powdery materials.
Advantages
- Easy to operate, energy-saving and high-yielding
- The structure is simple, the operation is convenient, no requirement for lubrication, the power consumption is low, and the feeding amount is adjustable.
- Smooth start-up and long service life
- A flexible belt drives the reducer and motor of this equipment, which ensures smooth starting during operation and reduces impact force, thereby improving the service life of the equipment.

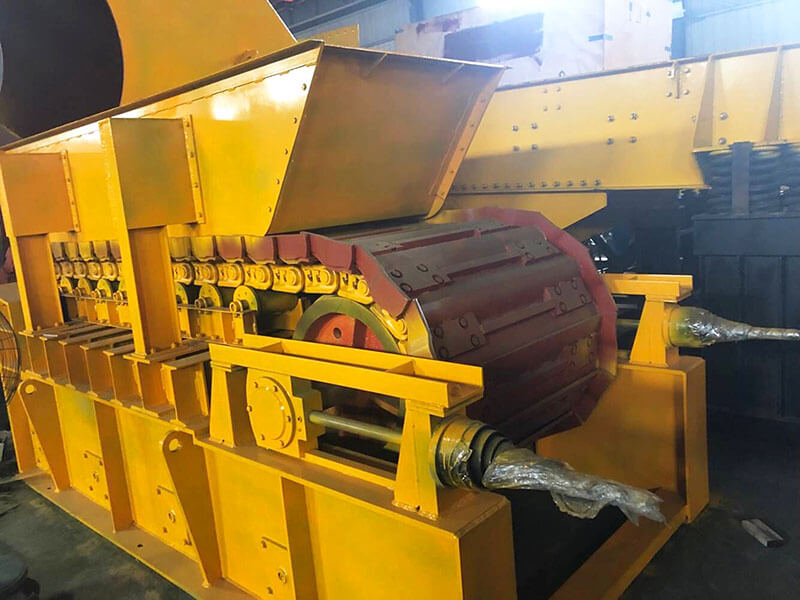

5. Plate feeder
The plate feeder is a continuous material conveying machine for evenly transporting materials to stone crushers, conveyors, or other machinery in a horizontal or inclined direction. It is suitable for transporting loose, block, and high-volume feeding processes in large and medium-sized cement production lines. It can work reliably in harsh environments with high temperatures and humidity. Especially for transporting large blocks, high temperatures, and sharp materials, and work reliably in outdoor and humid environments. The plate vibrating feeder includes three types: heavy-duty plate feeder, medium-sized plate feeder, and lightweight plate feeder.
Advantages and Characteristics
- Horizontal or tilt installation is acceptable.
- It requires the material bin has materials to avoid the direct impact of materials on the vibrating feeder.
- The upper limit of feed particle size reaches 1000mm.
We accept customization for more models to meet the requirements of different customers. The price of the mining equipment will determined by the manufacturer’s type, machine model, manufacturing process capacity, etc. We can provide various mining equipment like stone crushers, etc. Welcome to consult JXSC‘s professional engineers to get the quotation based on your requirements. We can design a sand-making and crushing production line flow chart for you.
