Small Construction Waste Brick Slag Crushers

Brick slag belongs to part of construction waste, can be transformed into valuable resources after crushing, reduces environmental pollution, and brings economic benefits. There are many kinds of brick slag crushers with low prices, high efficiency, and high yield rates, which are very suitable for investment by small and medium-sized enterprises and newcomers.



7 types of small brick slag crushers

There are many types of small brick slag crushers on the market, so how much does a small brick slag crusher cost? It depends on the specific type and model of the equipment. Different types and specifications have different prices. After all, various types of equipment have different manufacturing processes and consumed materials, so the prices are also different.

Here are some commonly used small brick slag crushers with an output of 1-200 tons per hour.

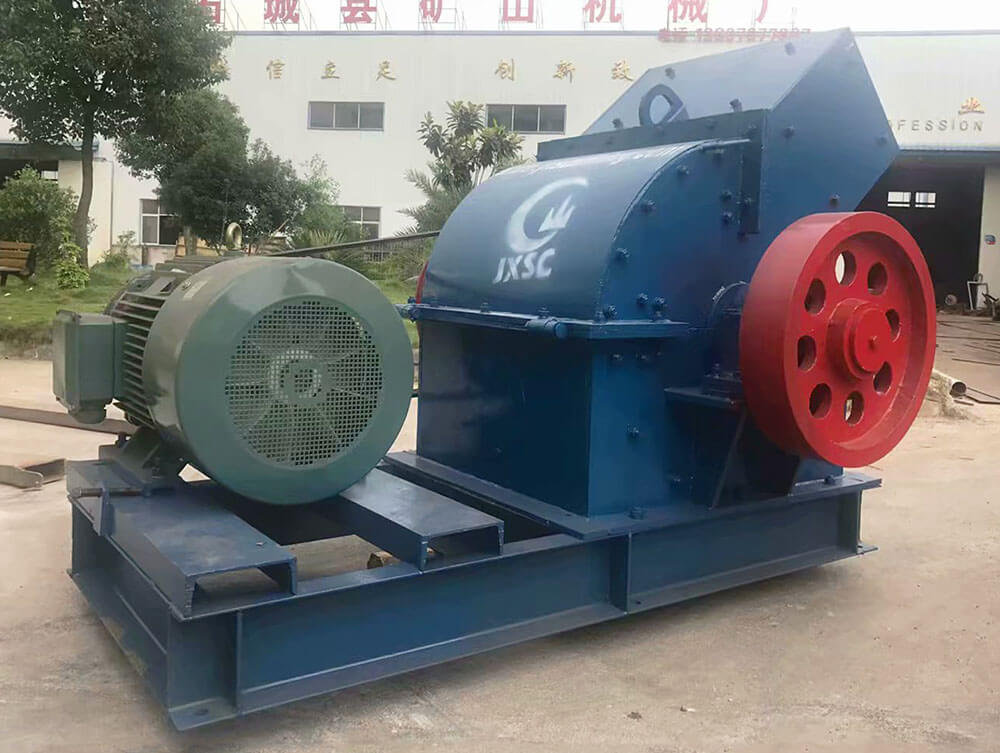

1. Hammer crusher

Feed size is <480mm; production capacity: 3-230t/h. The hammer crusher is suitable for materials with medium hardness. It can crush the materials into smaller particles at one time, reducing the need for secondary crushing and reducing costs.

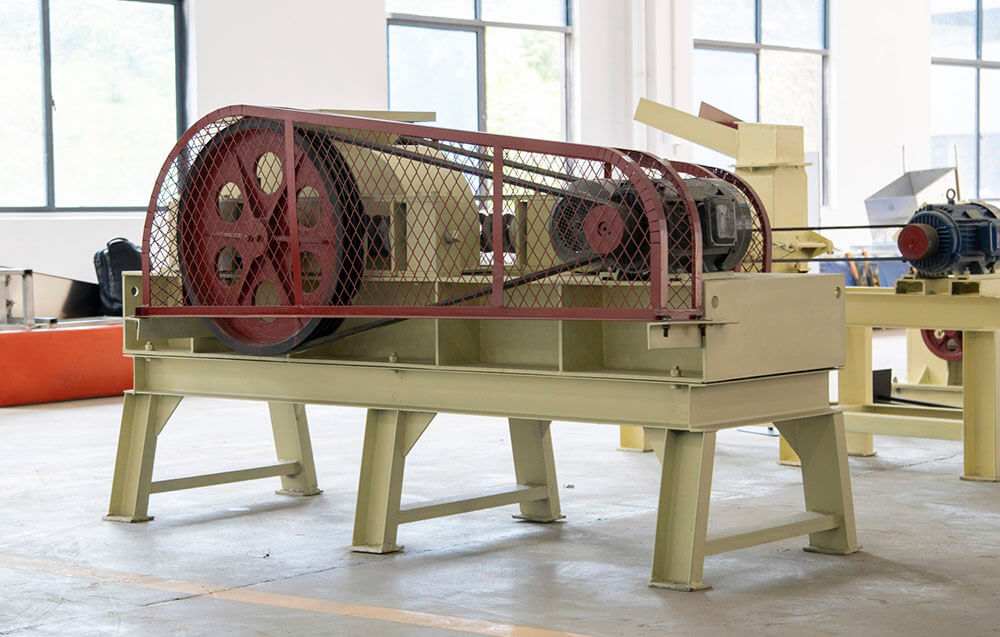

2. Roller crusher

Feed size is <60mm; production capacity: 3-240t/h, final product specifications are 2-10mm. Roller crusher is suitable for crushing brittle and tough materials. It has the advantages of small volume, adjustable discharge size, and low operating cost. This machine is ideal for small production lines. It is suitable for small brick slag crushing operations since the output range is from 5 tons/hour to 240 tons/hour.

3. Jaw crusher

Feed size is <500mm; production capacity: 1-240t/h. Final product specifications are 10-200mm. Although the jaw crusher is usually for primary crushing, it is suitable for processing brick slag in small-scale applications, especially when the raw material is large. After that, it cooperates with other types of crushers for further crushing.

4. Fine crusher

Feed size is <120-<190mm;

production capacity: 10-310t/h,

final product specifications are 5-20mm.

The fine crusher is suitable for finer crushing. If the brick slag needs to be processed into small particles, the fine crusher may be a good choice.

5. Double-stage crusher

Production capacity: 10-300t/h.

The double-stage crusher has no screen bottom design and uses double rotors for bidirectional continuous crushing. It has high crushing efficiency for materials with relatively high humidity. The sub-crusher adopts high wear-resistant steel, which is more durable, reduces replacement time, and is more convenient to maintain. It is very suitable for investment in small and medium-sized enterprises, and the equipment procurement cost is relatively low.

6. Compound vertical crusher

Feed size is 5-100mm;

production capacity is 5-100t/h;

finished product specifications are 3-6-10-20-40mm.

The compound crusher adopts a screen-free, adjustable discharging design with a relatively high sand discharging ratio, stable operation, low energy consumption, good sealing, and less pollution. The market price is also relatively low. Compared with the double-roll crusher, the particle shape is relatively better, and it is also an alternative sand-making machine for many small brick-slag crushing plants.

7. Mobile crusher

Mobile crusher, also known as mobile crushing station. It is mainly used for processing materials that often need to be relocated in metallurgy, chemical industry, building materials, hydropower, etc., especially for operations with mobile stones such as highways, railways, and hydropower projects. Users can use a variety of configurations according to the type of raw materials, scale, and final material requirements. Currently, mobile crushing stations are widely used in construction waste treatment projects in urban demolition. Crushing and screening construction waste into several recycled aggregates of different sizes and rules is the basis for realizing the resource reuse of construction waste.

Production capacity: 40-300t/h; chassis: frame module, tires, crawler. If it is not a stationary work site, choose the mobile crushers. It is convenient to move from one construction site to another, which is suitable for processing construction waste brick slag. Mobile crushers usually integrate crushing, screening, and conveying functions, occupy a small area, have strong mobility, and are suitable for flexible operations.



Application and prospects of waste brick slag and concrete

3. Building materials: Crushed brick slag can be used as aggregate for concrete to replace some natural sand, and used in concrete, mortar, prefabricated components production, etc. It reduces costs and the exploitation of natural resources.
4. Road construction: Brick slag becomes a road-based material for paving roadbeds and sidewalks to improve the stability and bearing capacity.
5. Filling materials: In construction projects, crushed brick slag is the backfill material for foundation reinforcement and gap filling.
6. Environmentally friendly bricks: Crushed brick slag can be re-pressed into environmentally friendly bricks for building exterior wall decoration or interior partitions.
7. Recycling: In some areas, the government encourages and supports the recycling of construction waste, and promotes the recycling of construction waste such as brick slag through policy subsidies and technical support.

Prospects

1. Therefore, the processed waste brick slag helps solve the problem of construction waste disposal, reduces environmental pollution, and creates economic value. It conforms to the concept of sustainable development. With the society’s emphasis on circular economy and green buildings, the market prospects for brick slag crushing and treatment will continue to be promising.
2. For small-scale brick slag crushing operations, it is essential to choose a suitable crusher rather than low-priced equipment. We should consider the characteristics of brick slag (such as hardness, and humidity), output, final product particle size requirements, environmental protection requirements, site electricity usage, and cost budget, and choose a cost-effective equipment.



We accept customization for more models to meet the requirements of different customers. The price of the mining equipment will determined by the manufacturer’s type, machine model, manufacturing process capacity, etc. We can provide various mining equipment like stone crushers, etc. Welcome to consult JXSC‘s professional engineers to get the quotation based on your requirements. We can design a sand-making and crushing production line flow chart for you.
