Design and Research of a Recycled Concrete Crusher

In the process of building demolition and construction, there will be a large number of concrete waste. That is, we often say construction waste. But in fact, there are many practical ways for this construction waste. It will cause a waste of resources if discard directly. Therefore, many times choose the recycled concrete crusher to the crusher, then for resource reuse, it can better save energy resources.

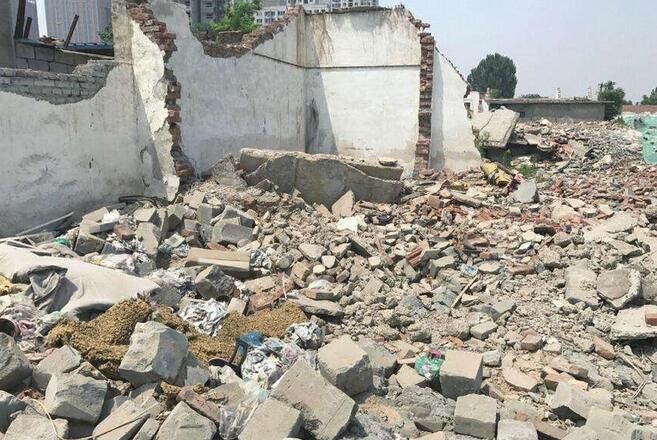

construction waste

Designing Scheme

A new type recycled concrete crusher machine, The structure comprises a casing and a rack fixed on one side of the casing. A jaw plate and a guide plate are respectively arranged on the inner side of the casing and the inner side of the casing. The jaw plate and the guide plate constitute a crushing Bin, and the crushing bin is arranged in a V shape.

The bottom of the box is provided with an opening for discharging opening. The top of the box is provided with a transmission system connected with the guide plate. The inner end of the guide plate is fixed on the elbow plate. The inner part of the box is obliquely inserted with a discharging opening adjuster. And the inner end of the discharging opening adjuster is connected with the discharging opening.

The middle position of the jaw plate and the material guide plate is provided with a material separating plate. The upper and lower ends of the jaw plate of the material separating plate are respectively provided with a big material outlet and a small material outlet. The slanting bottom of the big material outlet and the small material outlet are respectively connected with a big material bin and a small material bin. The surface of the big material outlet and the small material outlet are respectively installed with the big material valve and the small material valve.

recycling concrete crusher

As a preferred designing scheme, the large material valve and the small material valve are movably installed on the surfaces of the large and small material outlet through the slide rail. The inner end of the discharge opening adjuster is connected to the material guide plate in the position of the discharge opening. The outer end extends to the outside of the box body. The hole diameter of the big material outlet is larger than the small material outlet and larger than the discharge opening.

The material separator is a material separator with several through holes on the surface. The hole diameter of the through-hole is less than the big material outlet and larger than the small material outlet.

The new type recycling concrete crusher not only has the function of crushing but also can screen the crushed materials in the crushing process. The crushed materials of different sizes can be sorted and discharged from the outlet for different purposes. Instead of breaking it all up, it can be supplied for a variety of uses, meeting the diversity of uses.

To further understand this new type of recycled concrete breaker, the following figure illustrates. In this diagram: figure 1 is a schematic diagram of the structure; figure 2 is a schematic diagram of the structure of the large and small silos; figure number: 1 Chassis; 2 Racks; 3 Feed Plates; 4 Crushing Silos; 5 Jaw Plates; 6 Transmission System; 7 Outlet Adjusters; 8 Elbow Plates; 9 Large Silos; 10 small silos; 11 material separator; 12 big material outlet; 13 Small Material Outlet; 14 Big Material Valve; 15 Small Material Valve.

concrete crusher design

How works

This recycled concrete crusher, in the crushing process, can choose the degree of fragmentation. That is, the size of the broken material and diameter carry on the preliminary classification treatment. In order to be used for different kinds of work. The concrete waste is put into the crushing chamber. During the crushing process, the degree of crushing can be determined by different discharging Bin Doors. It is used for classifying and collecting different sizes of broken concrete.

After entering the broken concrete bin, the different outlets can be opened and closed according to the actual needs. When working, the three openings are opened separately and the partition board is installed. At this time, the relatively small particles fall into the bottom crushing bin through the separator. And the large particles fall into the big bin after the vibration. Similarly, the relatively small particles fall into the small bin 1. The smallest particles are discharged from the discharging opening to complete the crushing and screening work. Fragments of different sizes can be used in different ways.

Conclusion

The recycled concrete crusher not only has the function of crushing but also can screen the crushed materials during the crushing process. The crushed materials of different sizes can be sorted and discharged from the outlet. Thus, it can be used for different purposes, instead of being broken up completely. And supply for different purposes which fully recycled and reused. Save energy resources to meet the diversity of use.
